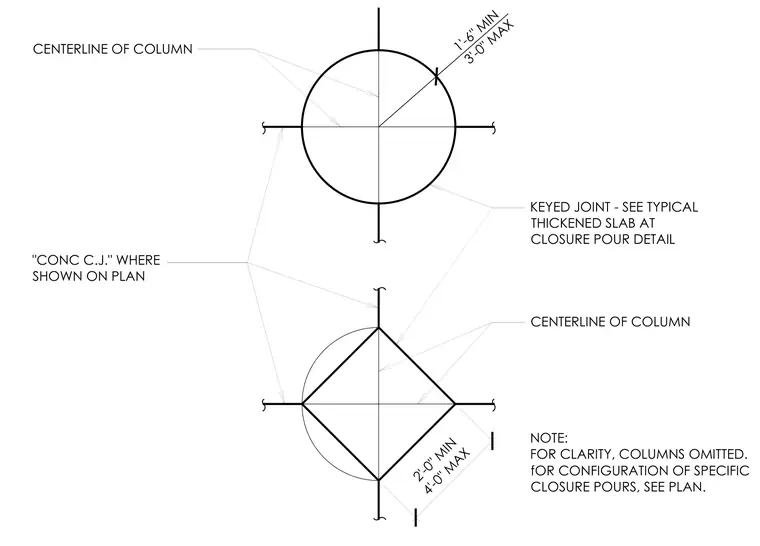

Concrete construction joint and closure pour layouts surround circular and square columns. Keyed joints are located between one foot six inches minimum and three feet zero inches maximum from the circular column centerline, or two feet zero inches minimum and four feet zero inches maximum from the square column centerline. Concrete construction joints are indicated where shown on the plan. Columns are omitted for clarity, and specific closure pour configurations are referenced per plan.
CENTERLINE OF COLUMN "CONC C.J." WHERE SHOWN ON PLAN KEYED JOINT - SEE TYPICAL THICKENED SLAB AT CLOSURE POUR DETAIL 1'-6" MIN 3'-0" MAX NOTE: FOR CLARITY, COLUMNS OMITTED. fOR CONFIGURATION OF SPECIFIC CLOSURE POURS, SEE PLAN. CENTERLINE OF COLUMN 2'-0" MIN 4'-0" MAX
