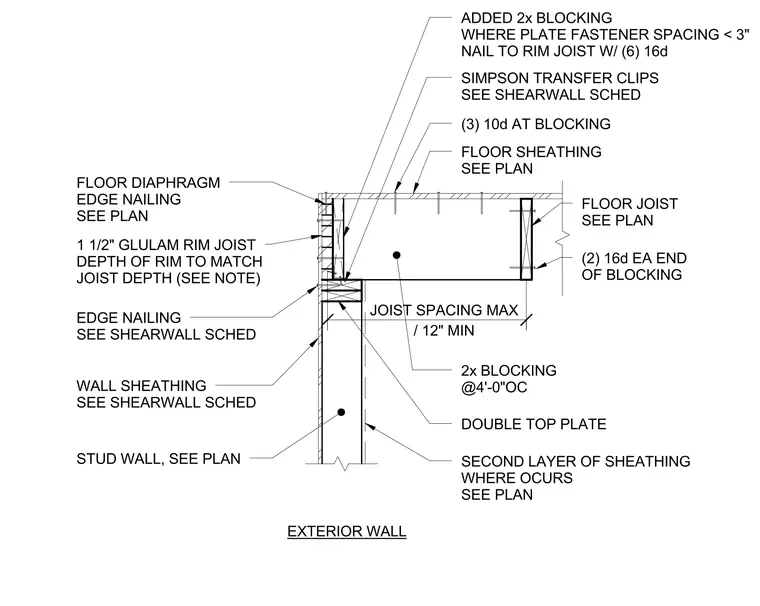

The floor joist runs parallel to the exterior stud wall, bearing on a double top plate with two-by-four or two-by-six blocking at four feet on center. A one-and-a-half-inch glulam rim joist matches the depth of the floor joist and receives floor diaphragm edge nailing per the plan. Simpson transfer clips are installed according to the shearwall schedule, with additional two-by blocking added where plate fastener spacing is less than three inches. Wall sheathing and edge nailing are provided per the shearwall schedule, with a second layer of sheathing included where required.
DOUBLE TOP PLATE SIMPSON TRANSFER CLIPS SEE SHEARWALL SCHED 2x BLOCKING @4'-0"OC STUD WALL, SEE PLAN WALL SHEATHING SEE SHEARWALL SCHED SECOND LAYER OF SHEATHING WHERE OCURS SEE PLAN EDGE NAILING SEE SHEARWALL SCHED ADDED 2x BLOCKING WHERE PLATE FASTENER SPACING < 3" NAIL TO RIM JOIST W/ (6) 16d FLOOR SHEATHING SEE PLAN FLOOR DIAPHRAGM EDGE NAILING SEE PLAN EXTERIOR WALL (3) 10d AT BLOCKING FLOOR JOIST SEE PLAN (2) 16d EA END OF BLOCKING / 12" MIN JOIST SPACING MAX 1 1/2" GLULAM RIM JOIST DEPTH OF RIM TO MATCH JOIST DEPTH (SEE NOTE)
