Blocking is placed at each end of the wall, adjacent to each opening, and at eight feet on center horizontally maximum between studs. The blocking consists of a piece of track or stud of the same gauge as the stud with the web bent and attached to studs with two number eight sheet metal screws to each flange. One number eight sheet metal screw is used at each intermediate stud. A thirty-three mils by two inch continuous strap or one and one-half inch channel is provided where no sheathing occurs. Gypsum board is attached per the international building code with four number eight sheet metal screws per block, and no strap is required at the gypsum board.

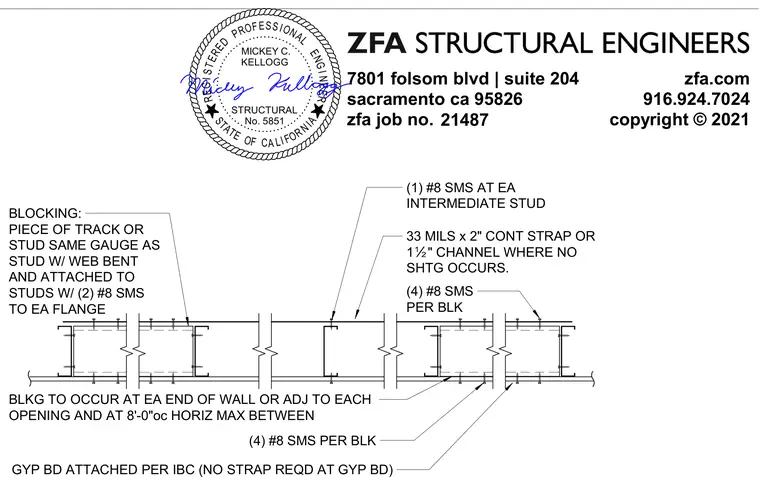

BLKG TO OCCUR AT EA END OF WALL OR ADJ TO EACH OPENING AND AT 8'-0"oc HORIZ MAX BETWEEN (4) #8 SMS PER BLK GYP BD ATTACHED PER IBC (NO STRAP REQD AT GYP BD) (4) #8 SMS PER BLK 33 MILS x 2" CONT STRAP OR 1Ï" CHANNEL WHERE NO SHTG OCCURS. (1) #8 SMS AT EA INTERMEDIATE STUD BLOCKING: PIECE OF TRACK OR STUD SAME GAUGE AS STUD W/ WEB BENT AND ATTACHED TO STUDS W/ (2) #8 SMS TO EA FLANGE 7801 folsom blvd | suite 204 sacramento ca 95826 zfa job no. zfa.com 916.924.7024 copyright © 2021 21487 MICKEY C. KELLOGG No. 5851 STRUCTURAL R R E E N I G N E L A N O I S S E F O R P D E R E T S I G E S A T A T E O F C A L I F O R N I
