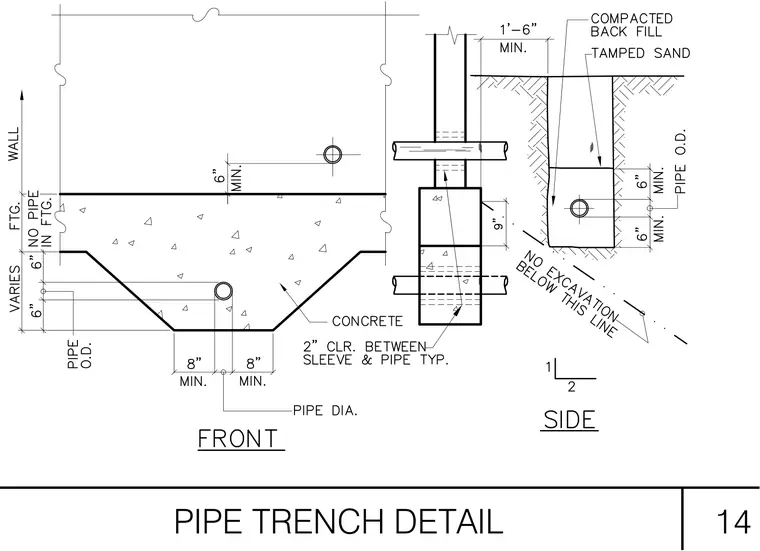

A pipe trench and wall footing penetration assembly features front and side views. A concrete footing contains a pipe running through a sleeve, maintaining a two-inch clearance between the sleeve and pipe typically. A compacted backfill over tamped sand sits above the pipe, with minimum six-inch clearances above and below the pipe outer diameter. Excavation limits are restricted below the indicated reference line.
