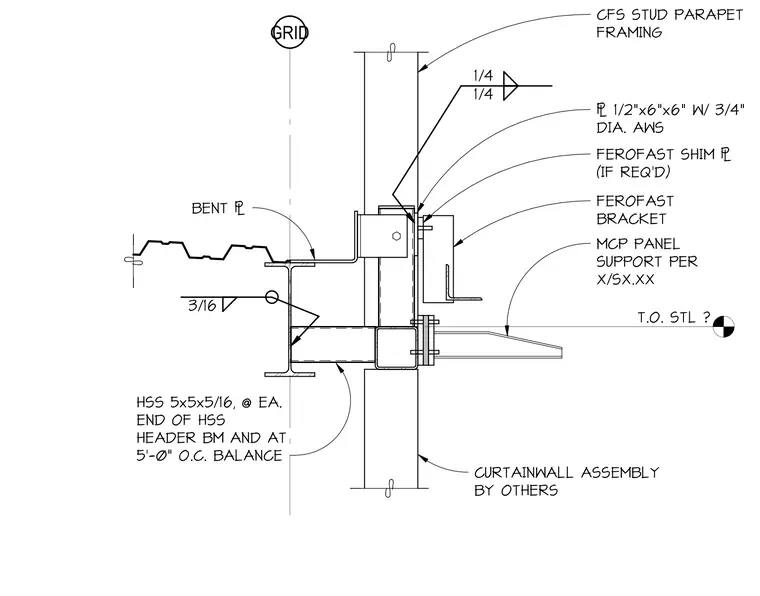

Cold-formed steel stud parapet framing connects to a structural steel framing assembly featuring an HSS 5x5x5/16 hollow structural section header beam spaced at five feet on center. A Ferofast bracket mounts to the assembly using a half-inch by six-inch by six-inch plate with three-quarter-inch diameter anchor welds, supplemented by Ferofast shim plates as required. A bent plate ties the roof deck and structural members together, welded with three-sixteenth-inch fillet welds. Metal composite panel supports extend outward to receive the exterior curtainwall assembly provided by others.
GRID T.O. STL ? HSS 5x5x5/16, @ EA. END OF HSS HEADER BM AND AT 5'-0" O.C. BALANCE MCP PANEL SUPPORT PER X/SX.XX FEROFAST BRACKET FEROFAST SHIM # (IF REQ'D) # 1/2"x6"x6" W/ 3/4" DIA. AWS CFS STUD PARAPET FRAMING 3/16 CURTAINWALL ASSEMBLY BY OTHERS 1/4 1/4 BENT #
