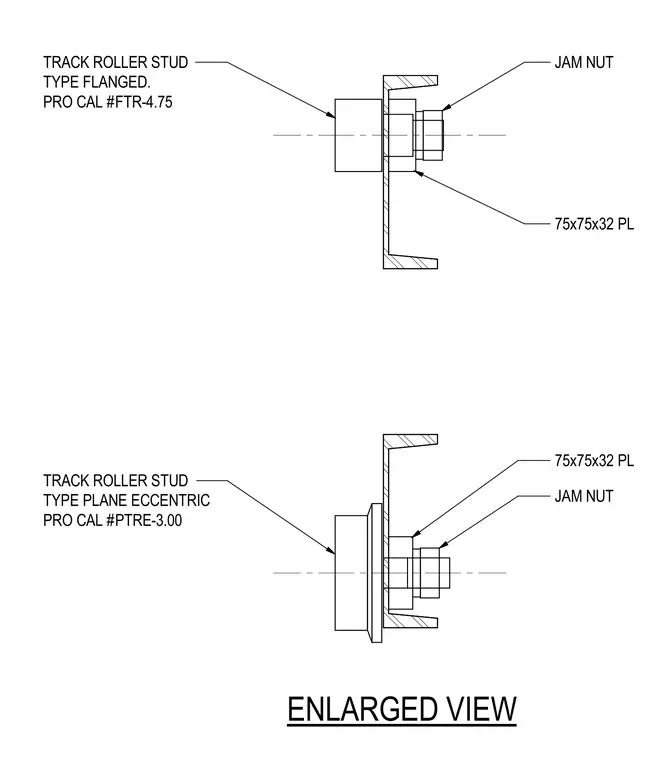

The assembly comprises a flanged track roller stud, Pro Cal part number FTR-4.75, secured through a seventy-five by seventy-five by thirty-two plate with a jam nut. A second configuration features a plane eccentric track roller stud, Pro Cal part number PTRE-3.00, similarly fastened through a seventy-five by seventy-five by thirty-two plate using a jam nut.
ENLARGED VIEW JAM NUT 75x75x32 PL TRACK ROLLER STUD TYPE FLANGED. PRO CAL #FTR-4.75 TRACK ROLLER STUD TYPE PLANE ECCENTRIC PRO CAL #PTRE-3.00 75x75x32 PL JAM NUT
