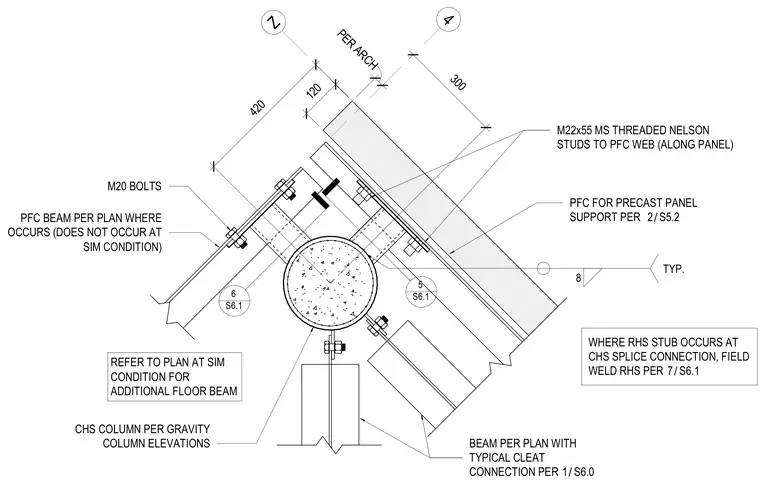

A circular hollow section (CHS) column supports parallel flange channel (PFC) beams for precast panel connections using M20 bolts and typical cleat connections per plan. M22x55 mild steel threaded Nelson studs are welded to the PFC web along the panel line. Additional floor beams are incorporated per plan at similar conditions where an RHS stub occurs at the CHS splice connection, field welded as specified.
Z 4 300 420 8 TYP. CHS COLUMN PER GRAVITY COLUMN ELEVATIONS PFC FOR PRECAST PANEL SUPPORT PER PFC BEAM PER PLAN WHERE OCCURS (DOES NOT OCCUR AT SIM CONDITION) M22x55 MS THREADED NELSON STUDS TO PFC WEB (ALONG PANEL) M20 BOLTS 6 S6.1 5 S6.1 PER ARCH BEAM PER PLAN WITH TYPICAL CLEAT CONNECTION PER / 1 S6.0 / 2 S5.2 REFER TO PLAN AT SIM CONDITION FOR ADDITIONAL FLOOR BEAM WHERE RHS STUB OCCURS AT CHS SPLICE CONNECTION, FIELD WELD RHS PER / 7 S6.1 120
