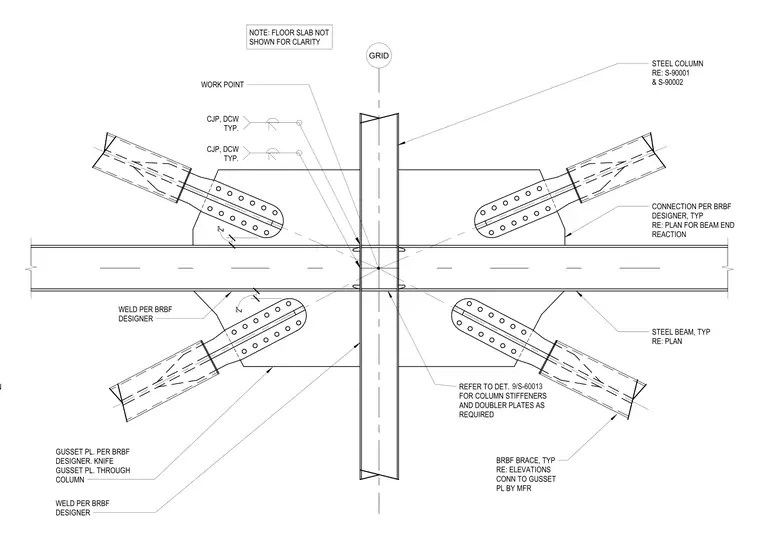

This assembly features a knife-edge gusset plate that passes through the web of a steel column to connect buckling restrained braces. The gusset plate is welded to the column using complete joint penetration welds with demand critical welds as specified by the buckling restrained braced frame designer. The braces connect to the gusset plate via bolted connections, with the specific connection details provided by the manufacturer. Steel beams frame into the column, with end reactions and stiffener requirements referenced on separate structural sheets. The floor slab is omitted for clarity, and all welding must comply with the buckling restrained braced frame designer's specifications.
Text on the drawing
GRID KNIFE GUSSET PL THROUGH COLUMN 2" 2" WORK POINT STEEL COLUMN RE: S-90001 & S-90002 BRBF BRACE, TYP RE: ELEVATIONS CONN TO GUSSET PL BY MFR STEEL BEAM, TYP RE: PLAN GUSSET PL. PER BRBF DESIGNER. KNIFE GUSSET PL. THROUGH COLUMN NOTE: FLOOR SLAB NOT SHOWN FOR CLARITY WELD PER BRBF DESIGNER WELD PER BRBF DESIGNER CONNECTION PER BRBF DESIGNER, TYP RE: PLAN FOR BEAM END REACTION CJP, DCW TYP. REFER TO DET. FOR COLUMN STIFFENERS AND DOUBLER PLATES AS REQUIRED 9/S-60013 CJP, DCW TYP.
