Buckling-Restrained Braced Frame Protected Zones

Materials

Steel Metal (misc.)

Elements

Roofs Decks Millwork / Casework Connections / Plates

Connections

Deck Attachment

About this detail

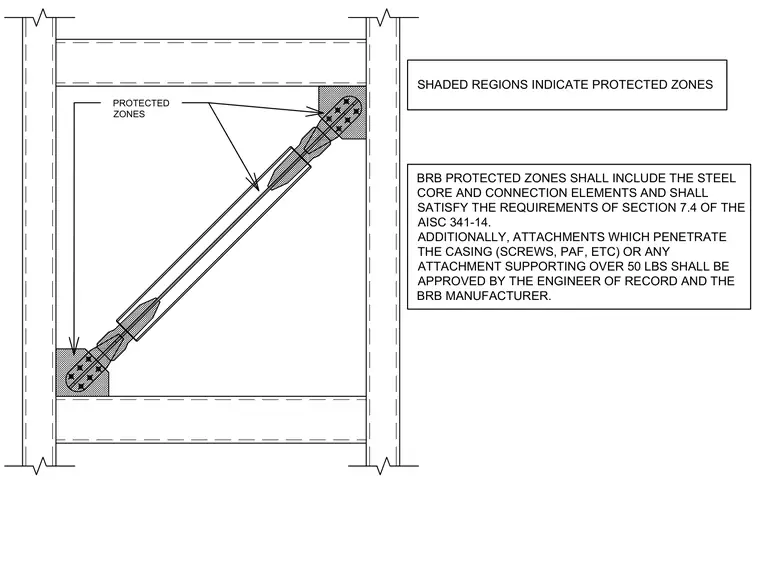

Shaded regions identify the protected zones of a buckling-restrained brace assembly, encompassing the steel core and connection elements in compliance with Section 7.4 of the AISC 341-14 standard. Attachments penetrating the casing, such as screws or powder-actuated fasteners, as well as any attachment supporting over fifty pounds, require approval from the engineer of record and the brace manufacturer.
