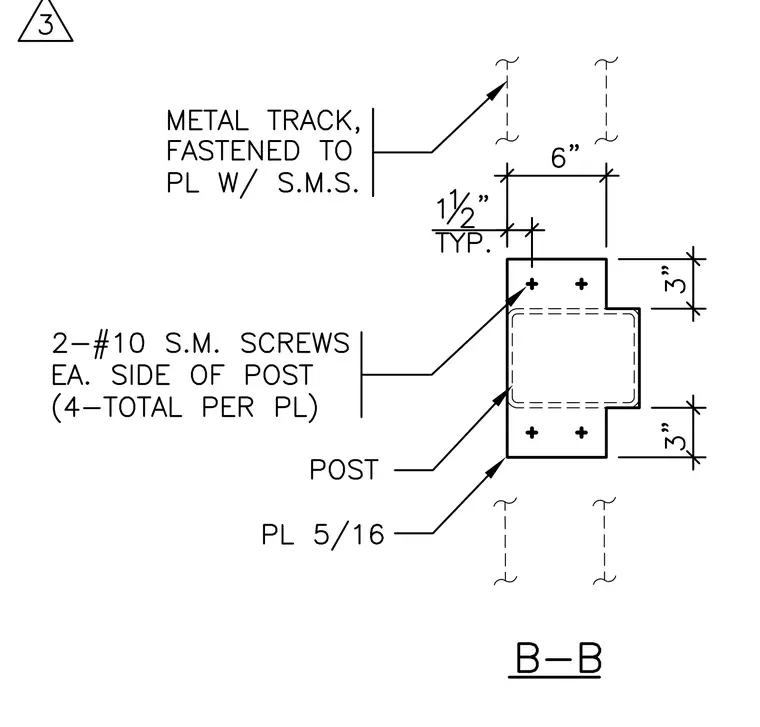

A metal track is fastened to a five-sixteenths inch steel plate using sheet metal screws. The steel plate is tied to the post with two number ten sheet metal screws on each side of the post, totaling four screws per plate. Dimensions indicate a six-inch total plate width with typical one-and-a-half-inch edge clearances and three-inch spacing offsets.
