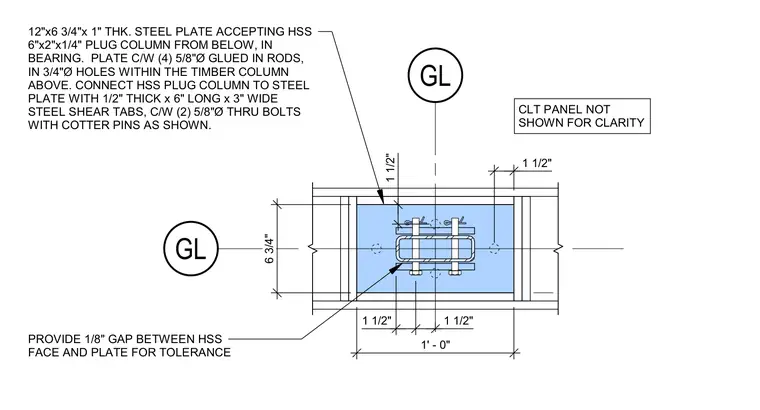

A hollow structural section measuring six inches by two inches by one-quarter inch thick acts as a plug column from below, bearing directly against a twelve-inch by six and three-quarter inch by one-inch thick steel plate. The steel plate is secured to the timber column above using four five-eighths-inch diameter glued-in rods inserted into three-quarter-inch diameter holes. A one-eighth-inch gap is provided between the hollow structural section face and the plate for tolerance. The hollow structural section plug column is connected to the steel plate with two one-half-inch thick by six-inch long by three-wide steel shear tabs complete with two five-eighths-inch diameter through-bolts and cotter pins. Cross-laminated timber panels are omitted from the view for clarity.
CLT PANEL NOT SHOWN FOR CLARITY GL GL 6 3/4" 1' - 0" 1 1/2" 1 1/2" PROVIDE 1/8" GAP BETWEEN HSS FACE AND PLATE FOR TOLERANCE 12"x6 3/4"x 1" THK. STEEL PLATE ACCEPTING HSS 6"x2"x1/4" PLUG COLUMN FROM BELOW, IN BEARING. PLATE C/W (4) 5/8"Ø GLUED IN RODS, IN 3/4"Ø HOLES WITHIN THE TIMBER COLUMN ABOVE. CONNECT HSS PLUG COLUMN TO STEEL PLATE WITH 1/2" THICK x 6" LONG x 3" WIDE STEEL SHEAR TABS, C/W (2) 5/8"Ø THRU BOLTS WITH COTTER PINS AS SHOWN. 1 1/2" 1 1/2"
