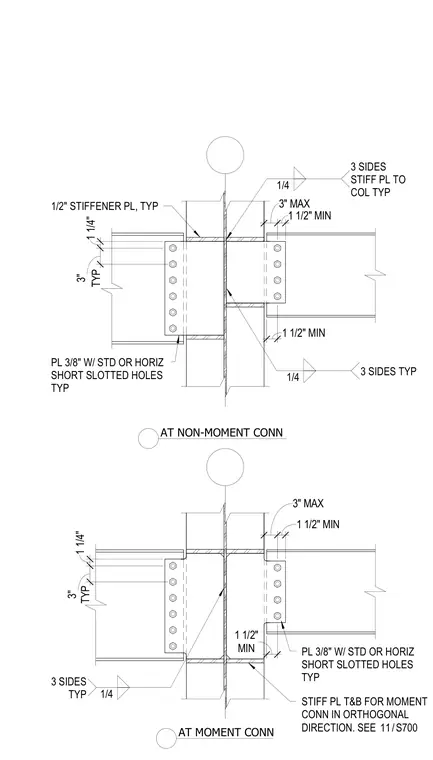

A structural connection features a 3/8-inch plate with standard or horizontal short slotted holes typically secured with bolts. Stiffener plates measuring 1/2-inch are welded to the column with typical 1/4-inch fillet welds on three sides. Additional top and bottom stiffener plates are provided for moment connections in the orthogonal direction as indicated on sheet 11/S700. Edge distances and spacings are detailed with a 1 1/2-inch minimum and 3-inch maximum.
PL 3/8" W/ STD OR HORIZ SHORT SLOTTED HOLES TYP 1/4 3 SIDES TYP 1 1/2" MIN 3" MAX 1 1/2" MIN 1 1/4" TYP 3" STIFF PL T&B FOR MOMENT CONN IN ORTHOGONAL DIRECTION. SEE AT MOMENT CONN AT NON-MOMENT CONN 1/2" STIFFENER PL, TYP 1/4 3 SIDES TYP 1/4 3 SIDES STIFF PL TO COL TYP PL 3/8" W/ STD OR HORIZ SHORT SLOTTED HOLES TYP 3" MAX 1 1/2" MIN 1 1/2" MIN TYP 3" 1 1/4" / 11 S700 11 S700
