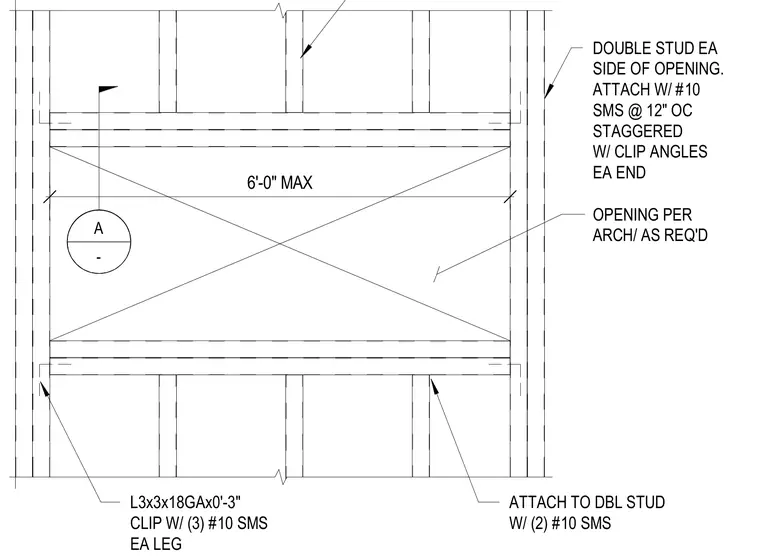

Framing detail showing a maximum six-foot opening bounded by double studs on each side. L3x3x18 gauge by zero-foot-three-inch clip angles secure the header, fastened with three number ten sheet metal screws on each leg. Clip angles attach to the double studs using two number ten sheet metal screws, spaced at twelve inches on center staggered. Connections are configured to support structural loads around roof or floor openings.
6'-0" MAX L3x3x18GAx0'-3" CLIP W/ (3) #10 SMS EA LEG DOUBLE STUD EA SIDE OF OPENING. ATTACH W/ #10 SMS @ 12" OC STAGGERED W/ CLIP ANGLES EA END OPENING PER ARCH/ AS REQ'D ATTACH TO DBL STUD W/ (2) #10 SMS A -
