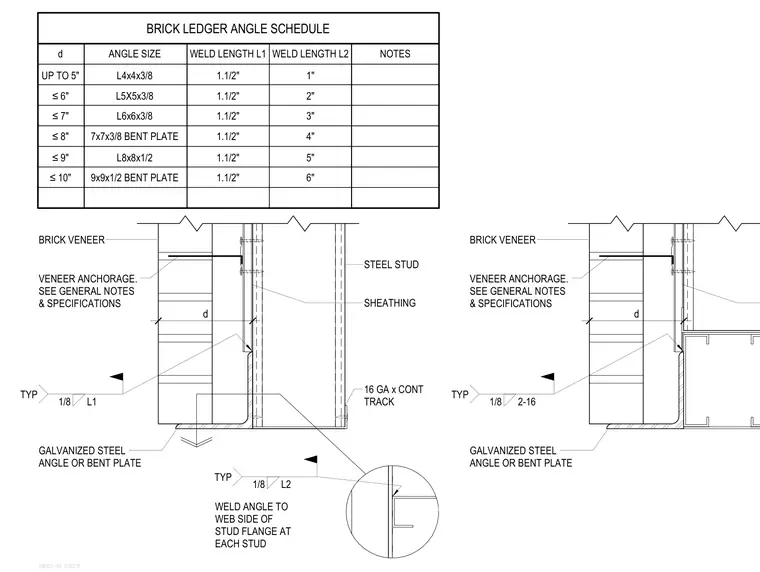

Brick veneer is supported by a galvanized steel angle or bent plate ledger welded to the web side of the steel stud flange at each stud. The assembly includes exterior sheathing, a sixteen gauge continuous track, and veneer anchorage as specified in general notes. A companion schedule outlines angle sizes, weld lengths L1 and L2 for eccentric dimensions up to ten inches, utilizing one-eighth inch fillet welds typically. The ledger angle size scales from L4x4x3/8 up to a 9x9x1/2 bent plate depending on the veneer offset dimension.
SW003-A2 LEDGER BRICK VENEER GALVANIZED STEEL ANGLE OR BENT PLATE VENEER ANCHORAGE. SEE GENERAL NOTES & SPECIFICATIONS 16 GA x CONT TRACK SHEATHING STEEL STUD 1/8 L1 TYP WELD LENGTH L2 1" BRICK LEDGER ANGLE SCHEDULE WELD LENGTH L1 1.1/2" 1/8 L2 TYP WELD ANGLE TO WEB SIDE OF STUD FLANGE AT EACH STUD ANGLE SIZE L4x4x3/8 d UP TO 5" NOTES 2" 1.1/2" L5X5x3/8 ≤6" 3" 1.1/2" L6x6x3/8 ≤7" 4" 1.1/2" 7x7x3/8 BENT PLATE ≤8" 5" 1.1/2" L8x8x1/2 ≤9" 6" 1.1/2" 9x9x1/2 BENT PLATE ≤10" d BRICK VENEER GALVANIZED STEEL ANGLE OR BENT PLATE VENEER ANCHORAGE. SEE GENERAL NOTES & SPECIFICATIONS 1/8 2-16 TYP d
