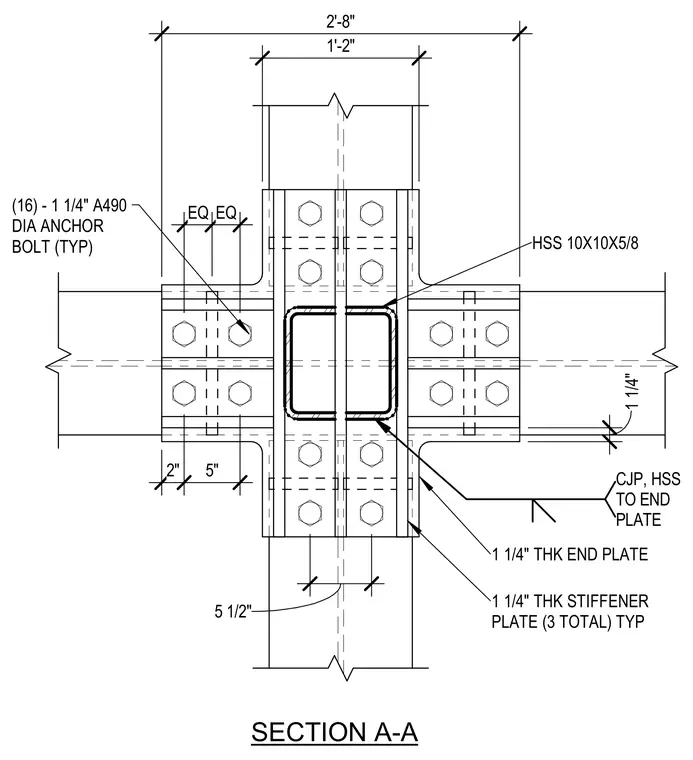

A heavy hollow structural section connection utilizes a one-and-a-quarter-inch thick end plate welded to an HSS 10x10x5/8 column with complete joint penetration welds. Three one-and-a-quarter-inch thick stiffener plates are provided typically around the perimeter to reinforce the connection. Sixteen one-and-a-quarter-inch diameter A490 anchor bolts secure the flanged assembly across the joint.
2'-8" 1'-2" HSS 10X10X5/8 1 1/4" THK END PLATE 1 1/4" THK STIFFENER PLATE (3 TOTAL) TYP CJP, HSS TO END PLATE 1 1/4" (16) - 1 1/4" A490 DIA ANCHOR BOLT (TYP) SECTION A-A EQ EQ 2" 5" 5 1/2"
