A skewed beam connection at the web utilizes a connection plate and bolts sized per schedule, complete joint penetration welds with a beveled back up bar for angles less than or equal to thirty degrees, and a single-sided complete penetration weld alternative where access is limited. An alternative option at concrete over metal deck features an angle brace connected to the deck with three shear studs per sixteen S one point two, and three-quarter inch diameter bolts. Fillet welds of one-quarter inch are specified on both sides of the angle brace.

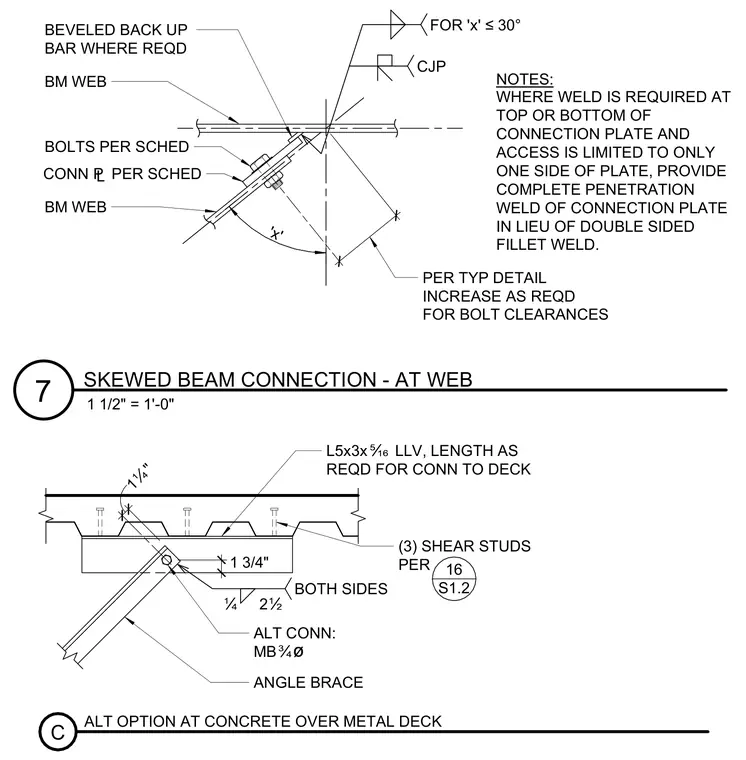

FOR 'x' Ä 30° BOLTS PER SCHED CONN £ PER SCHED BM WEB BM WEB BEVELED BACK UP BAR WHERE REQD CJP PER TYP DETAIL INCREASE AS REQD FOR BOLT CLEARANCES WHERE WELD IS REQUIRED AT TOP OR BOTTOM OF CONNECTION PLATE AND ACCESS IS LIMITED TO ONLY ONE SIDE OF PLATE, PROVIDE COMPLETE PENETRATION WELD OF CONNECTION PLATE IN LIEU OF DOUBLE SIDED FILLET WELD. NOTES: 'x' ALT CONN: MBÓø ANGLE BRACE L5x3xÌ LLV, LENGTH AS REQD FOR CONN TO DECK Ë 2Ï BOTH SIDES C (3) SHEAR STUDS PER 1Ë" 1 3/4" ALT OPTION AT CONCRETE OVER METAL DECK 16 S1.2 1 1/2" = 1'-0" 7 SKEWED BEAM CONNECTION - AT WEB
