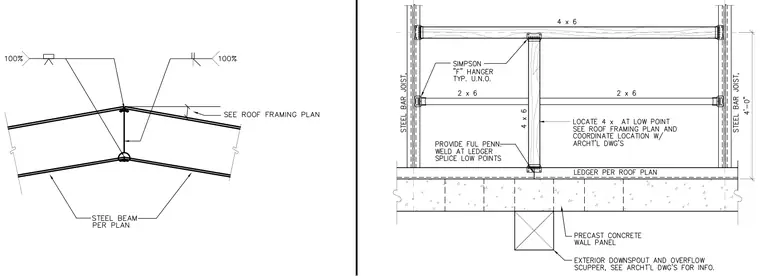

The roof framing assembly connects steel bar joists at four-foot intervals over a precast concrete wall panel. A four-by-six wood member and two-by-six framing elements are tied together using Simpson F hangers, with locations coordinated per the roof framing plan and architectural drawings. An exterior downspout and overflow scupper are integrated with the concrete wall panel. Steel beams per plan support the overall roof framing layout.
