Structural · S-5V8CE

Wall Offset From Steel Beam

Materials

Concrete Steel Masonry / CMU

Elements

Beams Walls Floors / Slabs Decks Bracing Connections / Plates

Connections

Bracing Connection

About this detail

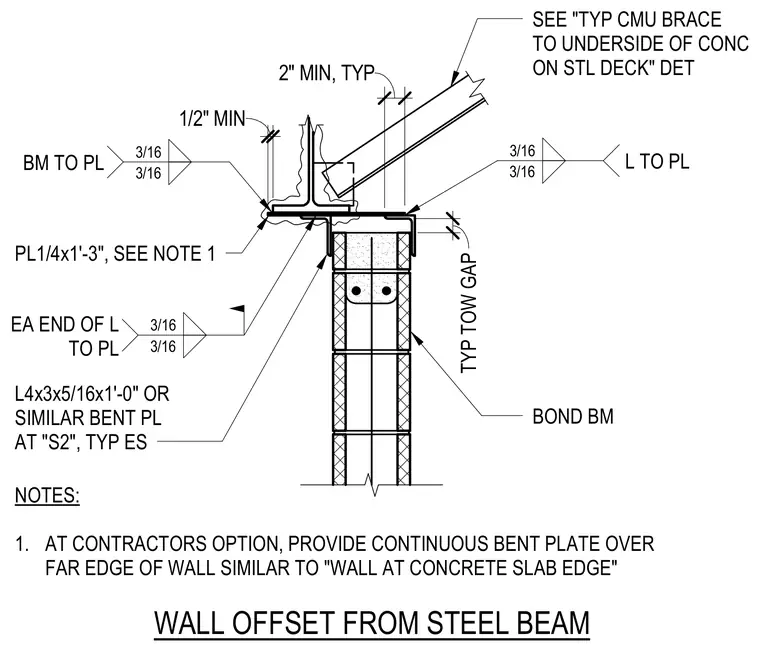

An angle measuring four by three by five-sixteenths inches and one foot long, or a similar bent plate, connects to the masonry bond beam at each end with three-sixteenth-inch fillet welds. A one-quarter-inch by one-foot-three-inch plate extends across the assembly with three-sixteenth-inch welds joining the beam to the plate. A typical top-of-wall gap is maintained, with a two-inch minimum offset and a one-half-inch minimum clearance. At the contractor's option, a continuous bent plate may be provided over the far edge of the wall.
