An alternate double stud attachment for interior studs uses eighteen-gauge, one-by-three-inch plates on both sides spaced at twenty-four inches on center, secured to each stud with number ten sheet metal screws in lieu of welding. Standard welded configurations use an eighth-inch weld spaced one inch on twenty-four-inch centers typically on each side.

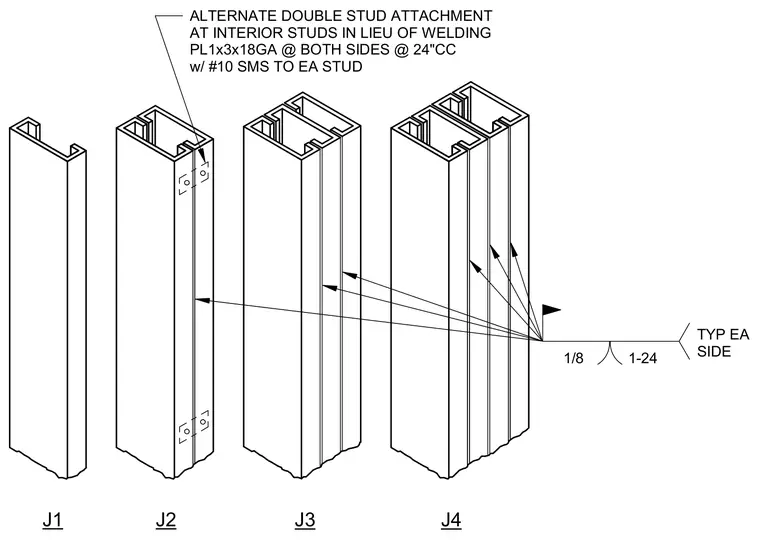

J2 ALTERNATE DOUBLE STUD ATTACHMENT AT INTERIOR STUDS IN LIEU OF WELDING PL1x3x18GA @ BOTH SIDES @ 24"CC w/ #10 SMS TO EA STUD J1 J3 J4 1/8 1-24 TYP EA SIDE
