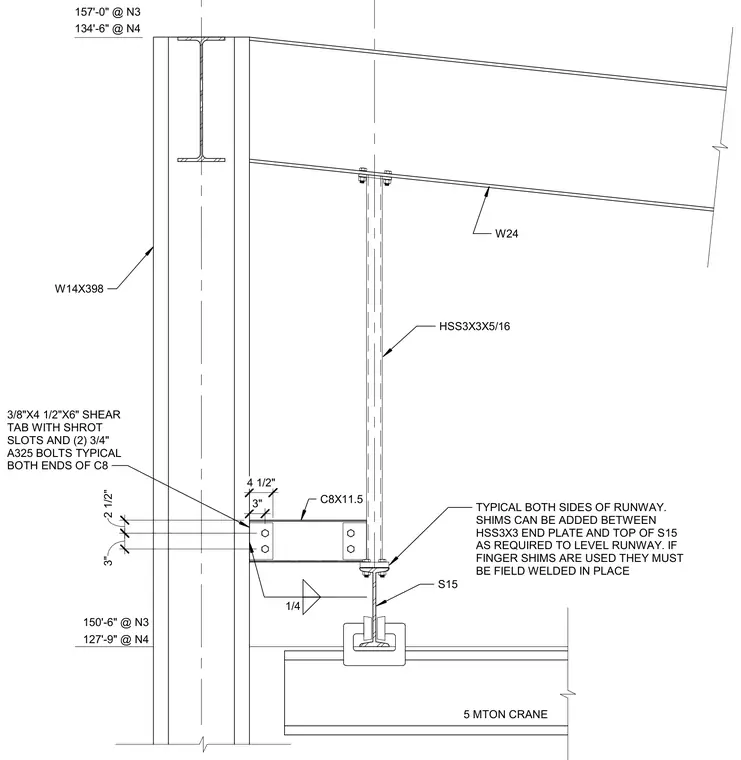

An HSS3x3x5/16 hollow structural section connects to the top flange of an S15 shape with an end plate, allowing shims to be added as required to level the runway. Finger shims, when used, are field welded in place. A C8x11.5 channel acts as a lateral brace, connecting to the structural system with a three-eighths-inch by four-and-a-half-inch by six-inch shear tab containing short slots and two three-quarter-inch A325 bolts at each end. A W14x398 column and W24 roof beam frame the assembly above a five-metric-ton crane.
4 1/2" 3" 2 1/2" 3" HSS3X3X5/16 W24 157'-0" @ N3 134'-6" @ N4 W14X398 S15 150'-6" @ N3 127'-9" @ N4 TYPICAL BOTH SIDES OF RUNWAY. SHIMS CAN BE ADDED BETWEEN HSS3X3 END PLATE AND TOP OF S15 AS REQUIRED TO LEVEL RUNWAY. IF FINGER SHIMS ARE USED THEY MUST BE FIELD WELDED IN PLACE 1/4 C8X11.5 3/8"X4 1/2"X6" SHEAR TAB WITH SHROT SLOTS AND (2) 3/4" A325 BOLTS TYPICAL BOTH ENDS OF C8 5 MTON CRANE
