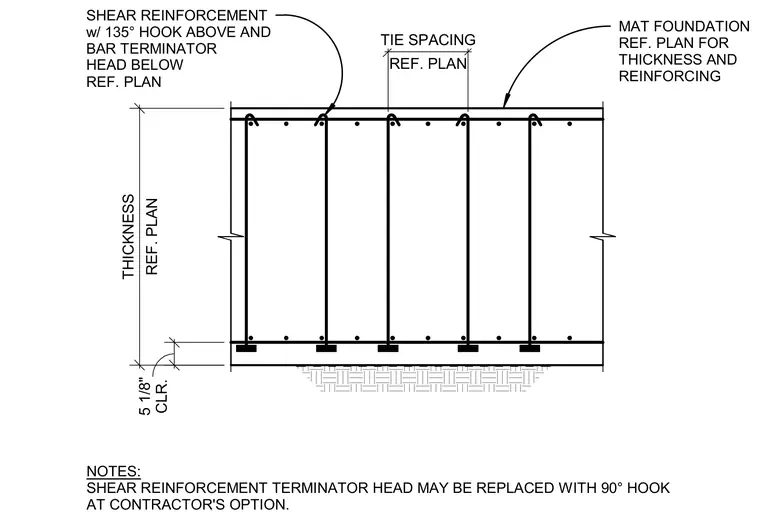

Shear reinforcement ties are anchored within a mat foundation, featuring a one hundred thirty-five degree hook above and a bar terminator head below. The terminator head may be replaced with a ninety degree hook at the contractor's option. Mat foundation thickness, reinforcing sizes, and tie spacing are sized per plan, maintaining a five and one-eighth inch clearance.
NOTES: SHEAR REINFORCEMENT TERMINATOR HEAD MAY BE REPLACED WITH 90° HOOK AT CONTRACTOR'S OPTION. SHEAR REINFORCEMENT w/ 135° HOOK ABOVE AND BAR TERMINATOR HEAD BELOW REF. PLAN REF. PLAN THICKNESS CLR. 5 1/8" REF. PLAN TIE SPACING MAT FOUNDATION REF. PLAN FOR THICKNESS AND REINFORCING
