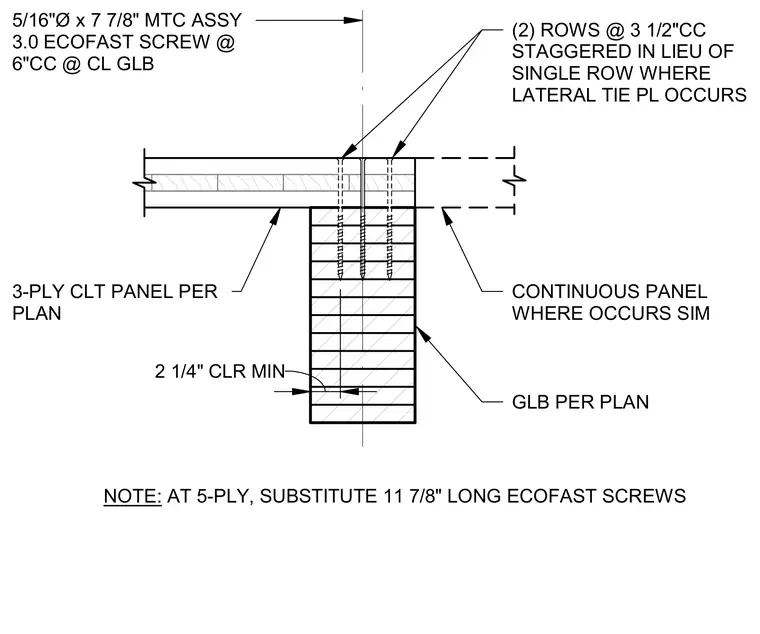

A 3-ply cross-laminated timber panel bears on a glued-laminated timber beam with a two and a quarter inch minimum clearance. The assembly is secured using five-sixteenths inch diameter by seven and seven-eighths inch long structural composite timber assembly Ecofast screws spaced at six inches on center along the centerline of the glued-laminated beam. Where a lateral tie plate occurs, two rows of screws are installed at three and a half inches on center staggered in lieu of the single row. At five-ply panels, eleven and seven-eighths inch long Ecofast screws are substituted.
5/16"Ø x 7 7/8" MTC ASSY 3.0 ECOFAST SCREW @ 6"CC @ CL GLB CONTINUOUS PANEL WHERE OCCURS SIM GLB PER PLAN 3-PLY CLT PANEL PER PLAN 2 1/4" CLR MIN NOTE: AT 5-PLY, SUBSTITUTE 11 7/8" LONG ECOFAST SCREWS (2) ROWS @ 3 1/2"CC STAGGERED IN LIEU OF SINGLE ROW WHERE LATERAL TIE PL OCCURS
