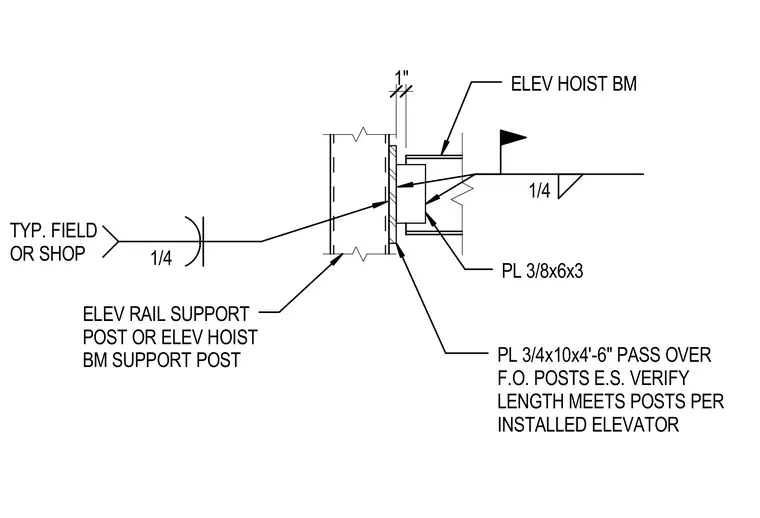

An elevator hoist beam connects to an elevator rail support post or hoist beam support post using a three-eighths by six by three inch plate welded to the beam. A three-quarter by ten by four foot six inch plate passes over the posts on each side, with length verified against the installed elevator. A quarter-inch field or shop fillet weld secures the assembly.
1/4 TYP. FIELD OR SHOP 1/4 PL 3/4x10x4'-6" PASS OVER F.O. POSTS E.S. VERIFY LENGTH MEETS POSTS PER INSTALLED ELEVATOR PL 3/8x6x3 ELEV HOIST BM 1" ELEV RAIL SUPPORT POST OR ELEV HOIST BM SUPPORT POST
