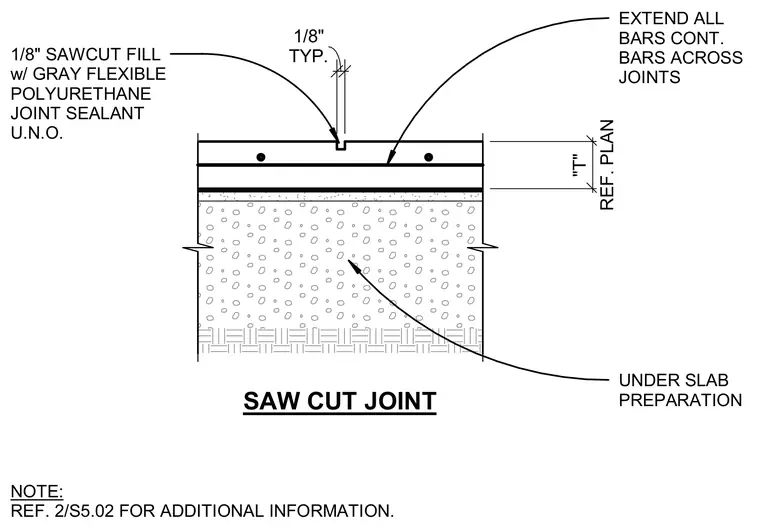

A saw cut control joint in a slab on grade is formed with a one-eighth-inch typical sawcut filled with gray flexible polyurethane joint sealant unless noted otherwise. Continuous reinforcing bars extend across the joint. The concrete slab rests over under-slab preparation.
UNDER SLAB PREPARATION SAW CUT JOINT 1/8" SAWCUT FILL w/ GRAY FLEXIBLE POLYURETHANE JOINT SEALANT U.N.O. 1/8" TYP. REF. PLAN "T" NOTE: REF. 2/S5.02 FOR ADDITIONAL INFORMATION. EXTEND ALL BARS CONT. BARS ACROSS JOINTS
