Architectural · S-5TCGS

Base Cabinet Wall Mounting and Countertop Section

Materials

Elements

Walls Doors Millwork / Casework Anchors / Embeds Connections / Plates

About this detail

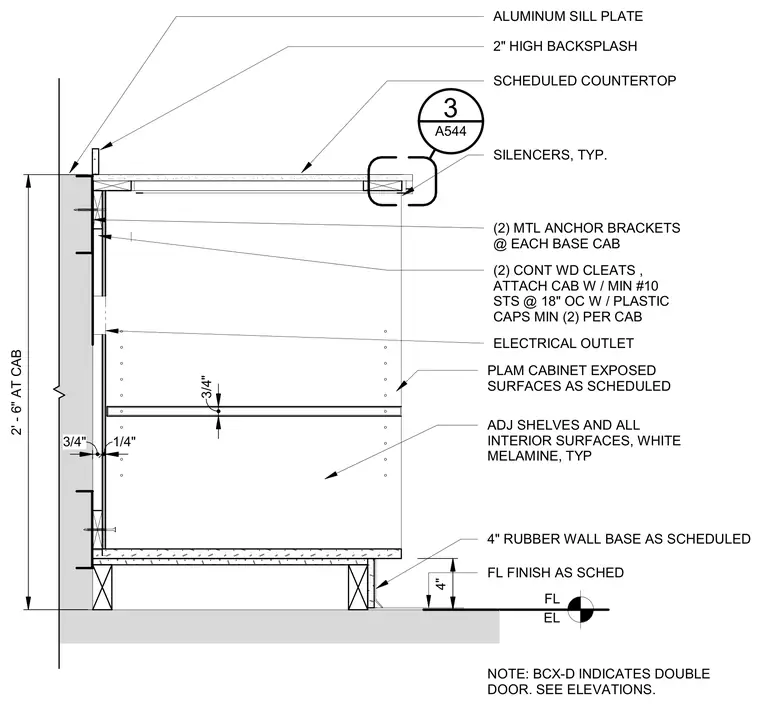

The base cabinet assembly features a scheduled countertop set two feet six inches above the finished floor, anchored to the supporting wall with two continuous wood cleats fastened using minimum number ten stainless steel screws at eighteen inches on center with plastic caps, and two metal anchor brackets at each base cabinet. Interior surfaces and adjustable shelves are finished in white melamine, while exposed surfaces feature plastic laminate. An aluminum sill plate sits at the top against the wall, alongside a two-inch high backsplash and typical door silencers. A four-inch rubber wall base finishes the bottom above the floor finish. An electrical outlet is integrated into the cabinet back.
