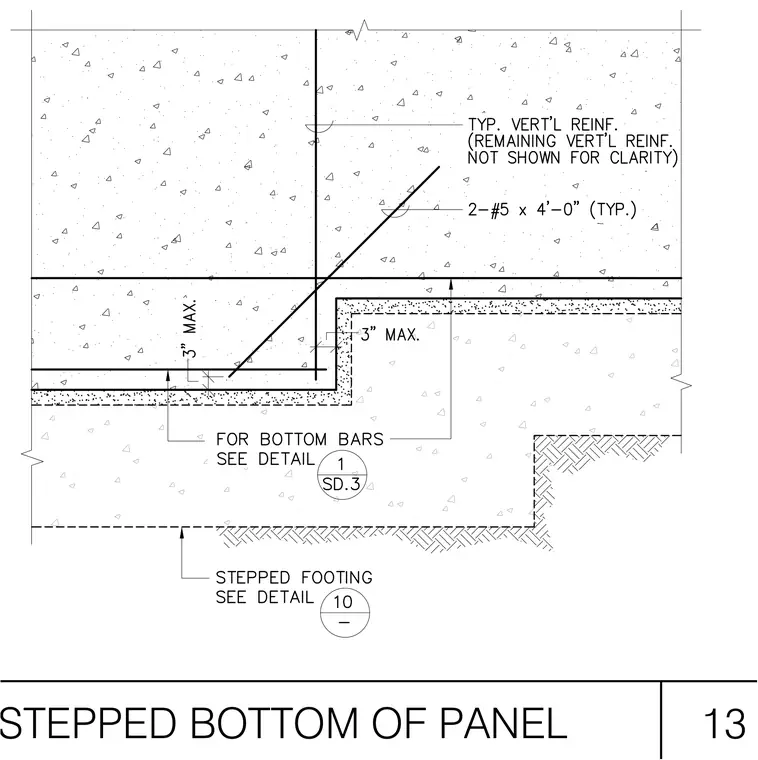

A precast concrete wall panel features a stepped bottom profile bearing over a stepped footing. The vertical reinforcement includes typical vertical reinforcing bars alongside two number five bars measuring four feet long. A maximum three-inch clearance is detailed at the horizontal and vertical step transitions. Additional bottom bars are referenced to detail one on sheet SD.3, while the stepped footing is referenced to detail ten.
