An elevator guide rail support hollow structural section column attaches to a structural steel floor beam and a concrete-filled metal floor deck. The structural steel beam connects to the hollow structural section column via a pair of L6x4x5/16 angles secured with three-quarter-inch through-bolts in two-inch vertical slotted holes with double nuts. A half-inch by ten-inch by two-foot plate with four three-quarter-inch diameter by three-inch heavy stud anchors secures the top. A half-inch by one-foot bent plate with three five-eighth-inch diameter by thirty-inch deformed bar anchors at five inches on center fastens to the assembly, with cutouts provided as required and centered on the rail location.

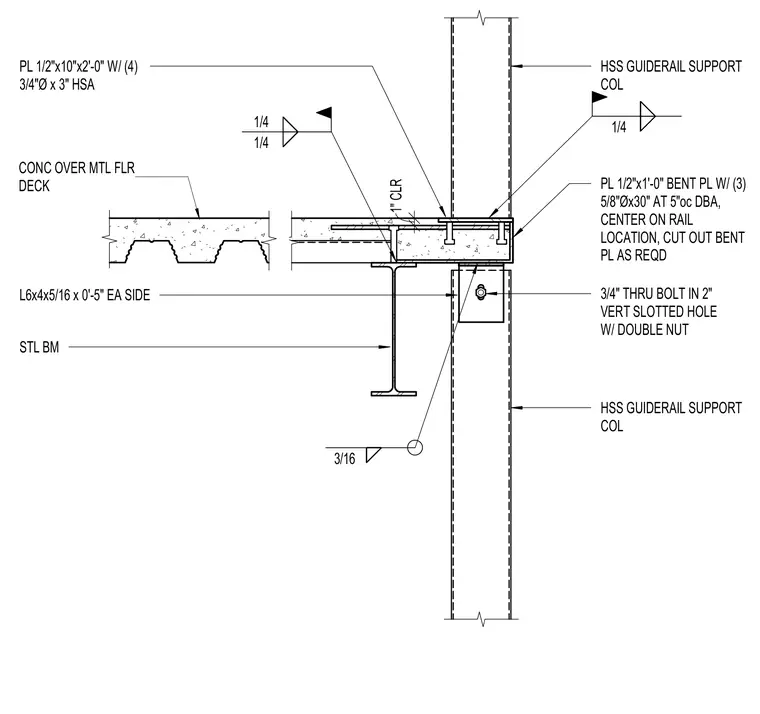

L6x4x5/16 x 0'-5" EA SIDE HSS GUIDERAIL SUPPORT COL STL BM 3/4" THRU BOLT IN 2" VERT SLOTTED HOLE W/ DOUBLE NUT HSS GUIDERAIL SUPPORT COL PL 1/2"x10"x2'-0" W/ (4) 3/4"Ø x 3" HSA PL 1/2"x1'-0" BENT PL W/ (3) 5/8"Øx30" AT 5"oc DBA, CENTER ON RAIL LOCATION, CUT OUT BENT PL AS REQD CONC OVER MTL FLR DECK 3/16 1/4 1/4 1/4 1" CLR
