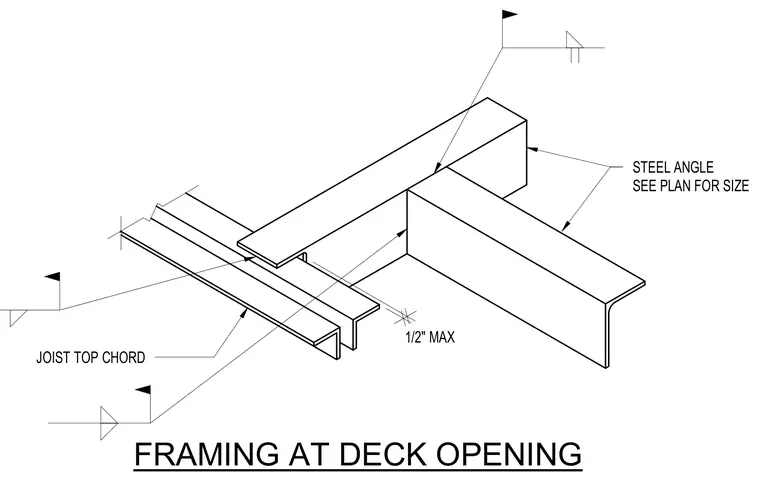

A steel angle sized per plan frames the perimeter of a structural deck opening adjacent to the joist top chord. A maximum clearance of one half inch is maintained between the framing components. Welded connections secure the steel angle to the supporting elements.
