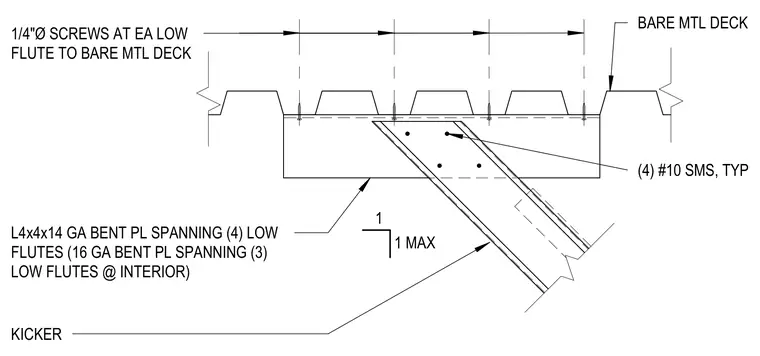

A structural kicker brace connects parallel to the low flutes of a bare metal deck. A bent plate spanning four low flutes, or sixteen-gauge bent plate spanning three low flutes at the interior, is secured to each low flute using quarter-inch diameter screws. The kicker connects to the bent plate using four number ten sheet metal screws typically.
1/4"Ø SCREWS AT EA LOW FLUTE TO BARE MTL DECK BARE MTL DECK KICKER (4) #10 SMS, TYP 1 MAX 1 L4x4x14 GA BENT PL SPANNING (4) LOW FLUTES (16 GA BENT PL SPANNING (3) LOW FLUTES @ INTERIOR)
