Structural · S-5SS29

Antenna Farm Post Connection Detail

Materials

Elements

Columns Beams Roofs Arches Connections / Plates

About this detail

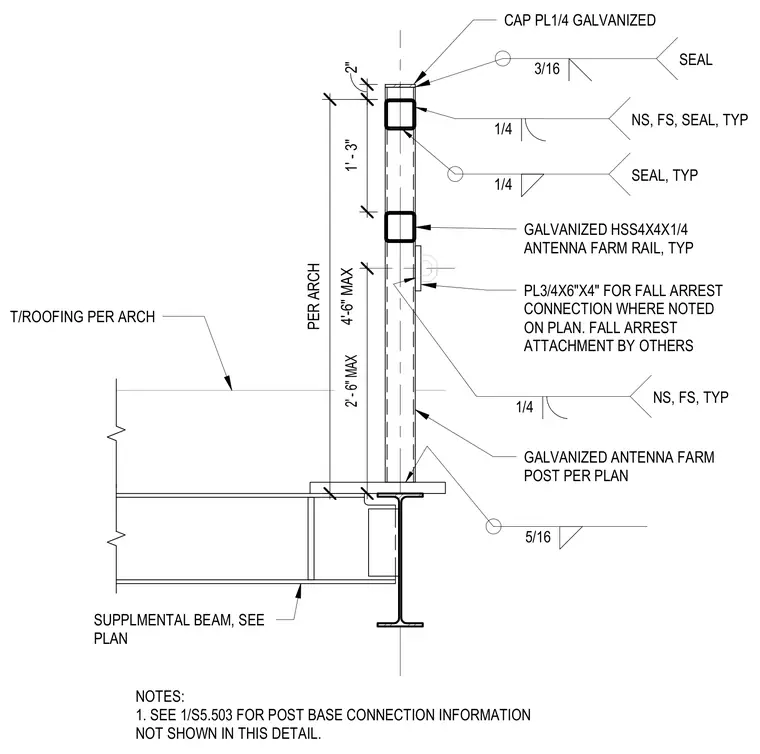

A galvanized antenna farm post mounts to a supplemental steel beam with a five-sixteenths-inch fillet weld. The assembly features two galvanized hollow structural section rails measuring four by four by one-quarter inches attached to the post with quarter-inch fillet welds on near and far sides with sealant. A three-quarter by six by four-inch plate is welded to the post for a fall arrest connection where noted on plan, with the fall arrest attachment provided by others. The top of the post is capped with a quarter-inch galvanized plate sealed with a three-sixteenths-inch weld. Roofing is provided per architectural specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
