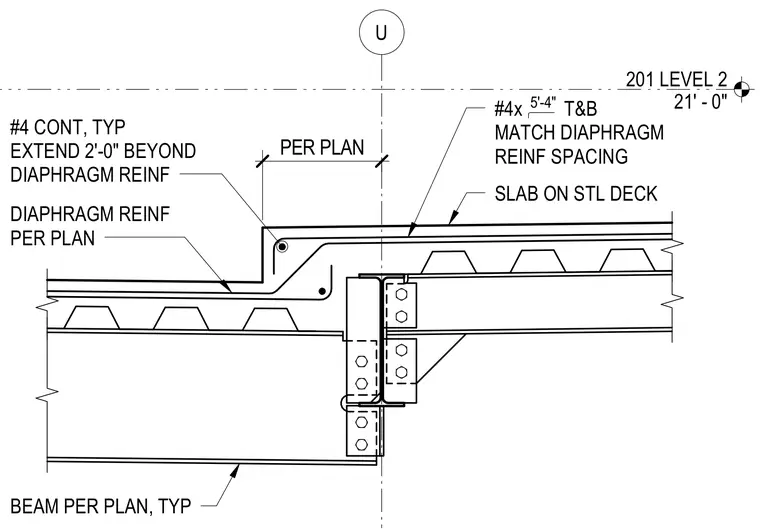

A concrete slab on metal deck bears on a structural steel beam supported per plan. Continuous number four reinforcing bars extend two feet beyond the diaphragm reinforcement. Additional number four top and bottom reinforcing bars match the diaphragm reinforcement spacing at five feet four inches. Diaphragm reinforcement is placed per plan.
201 LEVEL 2 21' - 0" U PER PLAN #4 CONT, TYP EXTEND 2'-0" BEYOND DIAPHRAGM REINF #4x T&B MATCH DIAPHRAGM REINF SPACING 5'-4" DIAPHRAGM REINF PER PLAN SLAB ON STL DECK BEAM PER PLAN, TYP
