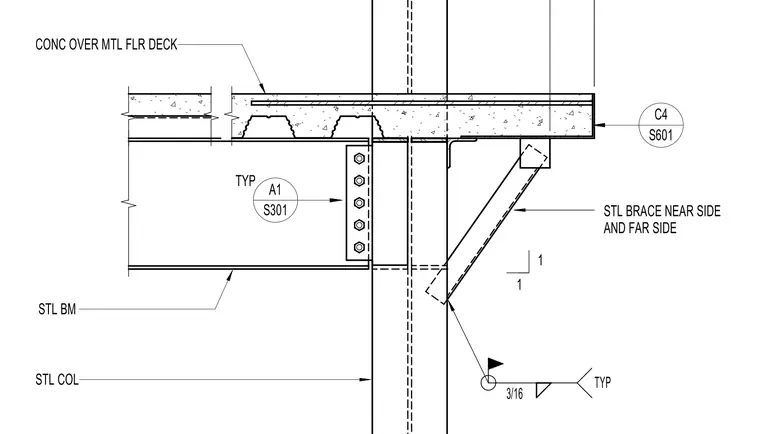

A concrete slab over metal floor deck frames directly against a structural steel column web. A steel beam connects to the column web with typical bolted shear connections. Steel braces are provided on both the near side and far side, welded with three-sixteenth inch fillet welds typically. The slab edge terminates at the exterior face of the assembly.
STL COL STL BM CONC OVER MTL FLR DECK STL BRACE NEAR SIDE AND FAR SIDE 1 1 A1 S301 C4 S601 3/16 TYP TYP
