A non-frame pipe column, similar to a hollow structural section tube, is welded to a base plate with a weld size per American Welding Society minimum or five-sixteenths. The base plate features a grout hole equal in size to the anchor bolt holes. Anchor bolts are sized per schedule with double nuts and hardened washers, bearing on the concrete footing. A one-and-a-half-inch typical grout space is provided below the base plate set at blockouts. The footing embeds anchor bolts equipped with one-half-inch by four-inch square plate washers and reinforcing ties consisting of number four bars at six inches on center with a minimum of three ties at the footing.

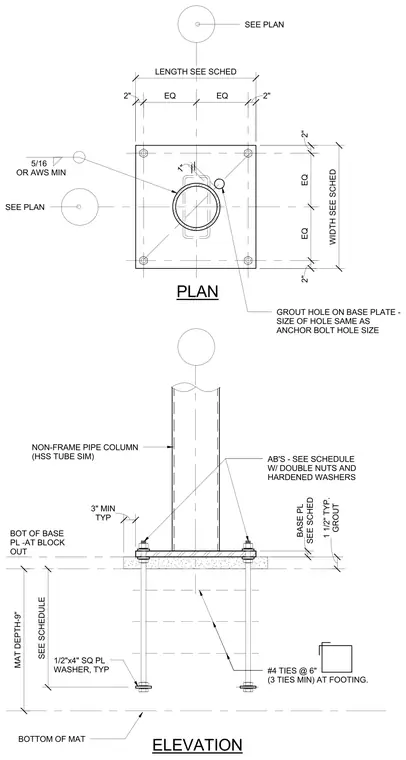

PLAN NON-FRAME PIPE COLUMN (HSS TUBE SIM) OR AWS MIN GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE 5/16 BOT OF BASE PL -AT BLOCK OUT AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF MAT 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT FOOTING. TYP 3" MIN GROUT 1 1/2" TYP. SEE SCHED BASE PL MAT DEPTH-9" 2" EQ EQ 2" LENGTH SEE SCHED 2" EQ EQ 2" WIDTH SEE SCHED 1" SEE SCHEDULE SEE PLAN SEE PLAN
