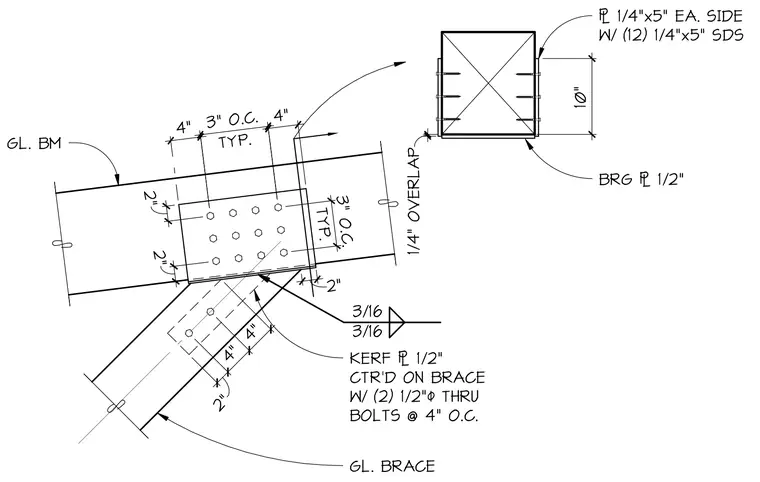

A glulam brace connects to a glulam beam using a one-half inch kerf plate centered on the brace and secured with two one-half inch diameter through bolts at four inches on center. Side plates measuring one-quarter inch by five inches are attached to each side with twelve one-quarter inch by five-inch self-drilling screws spaced at three inches on center typically. A one-half inch bearing plate is located beneath the connection with a one-quarter inch overlap.
GL. BRACE 10" 6 1/4"x5" EA. SIDE W/ (12) 1/4"x5" SDS BRG 6 1/2" 3/16 3/16 KERF 6 1/2" CTR'D ON BRACE W/ (2) 1/2"4 THRU BOLTS @ 4" O.C. TYP. 3" O.C. 2" 4" 4" 4" 4" 2" TYP. 3" O.C. 2" 2" GL. BM 1/4" OVERLAP
