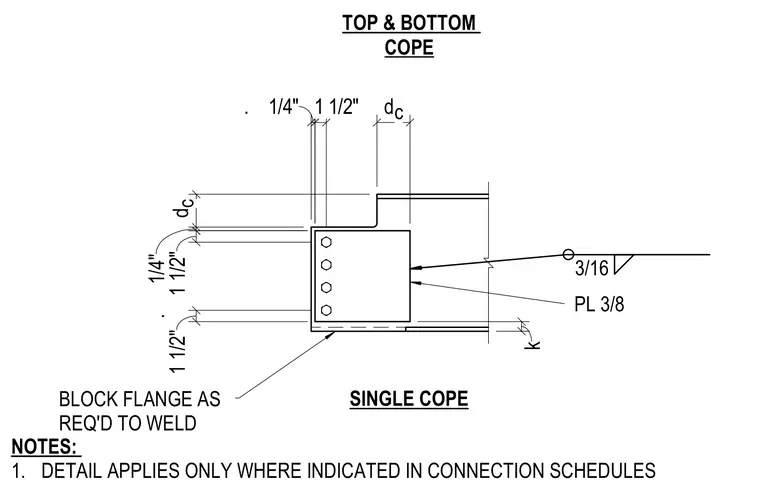

A steel beam web connection features top and bottom copes to clear intersecting members. A 3/8-inch thick plate connects to the beam web using four bolts in a vertical line. A 3/16-inch fillet weld secures the plate to the structural member. Dimensional callouts indicate 1 1/2-inch clearances and cope depths designated as d_c, with a k dimension at the flange. Flanges are blocked as required to accommodate the weld according to the connection schedule.
TOP & BOTTOM COPE SINGLE COPE k 1 1/2" 1 1/2" d . 1/4" . 1/4" d PL 3/8 c c BLOCK FLANGE AS REQ'D TO WELD NOTES: 1. DETAIL APPLIES ONLY WHERE INDICATED IN CONNECTION SCHEDULES 3/16 1 1/2"
