Structural · S-5S5KN

Slab Edge and Double Wall Atrium Connection

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Windows Floors / Slabs Decks Arches Bracing Insulation Anchors / Embeds Connections / Plates

Connections

Bracing Connection

About this detail

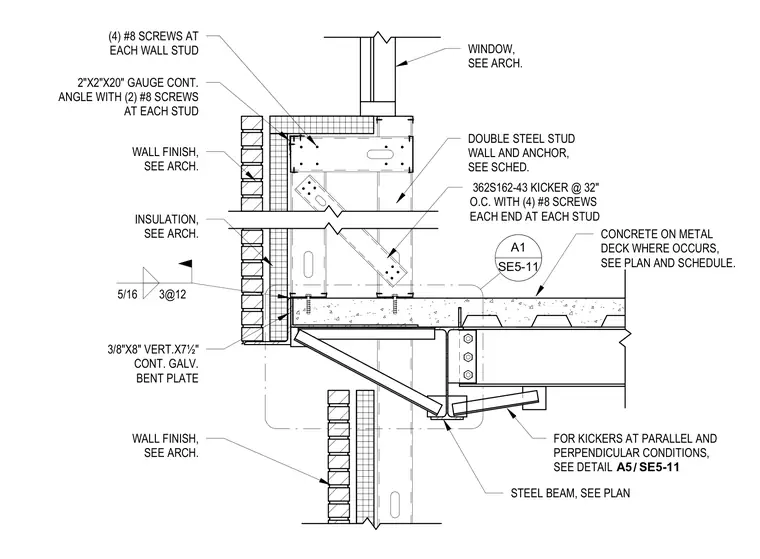

A structural detail incorporates a concrete slab edge and double steel stud wall assembly at an atrium condition. A steel beam supports the concrete on metal deck where specified, featuring a continuous three-eighths by eight inch vertical by seven and a half inch continuous galvanized bent plate. A double steel stud wall anchors the assembly, braced by 362S162-43 structural steel kickers spaced at thirty-two inches on center. Each kicker connects with four number eight screws at each end to the wall stud. A two by two by twenty gauge continuous angle secures the top with two number eight screws at each stud, while four number eight screws attach to each wall stud.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
