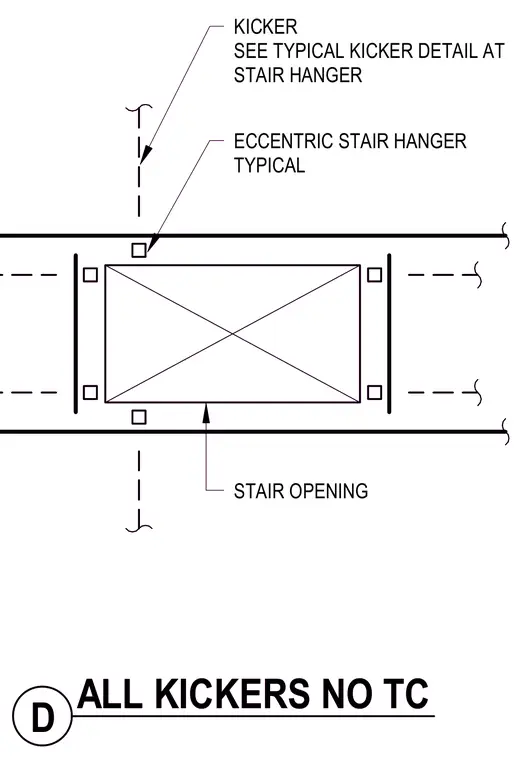

An eccentric stair hanger frames a stair opening with typical kickers positioned around the perimeter. The kicker details are referenced to typical connection details at the stair hanger without top chord bracing.
STAIR OPENING ECCENTRIC STAIR HANGER TYPICAL KICKER SEE TYPICAL KICKER DETAIL AT STAIR HANGER D ALL KICKERS NO TC STAIR OPENING ECCENTRIC STAIR HANGER TYPICAL KICKER SEE TYPICAL KICKER DETAIL AT STAIR HANGER D ALL KICKERS NO TC
