Metal stud jambs anchor to a concrete edge condition using a 14-gauge angle with a 3-1/2-inch vertical leg. The horizontal leg length matches the stud width minus 1/4 inch. Two powder-driven fasteners secure the angle to the concrete, while four number 12 screws fasten the angle to the stud jamb. Spacing is maintained with maximum 1-foot-0-inch intervals.

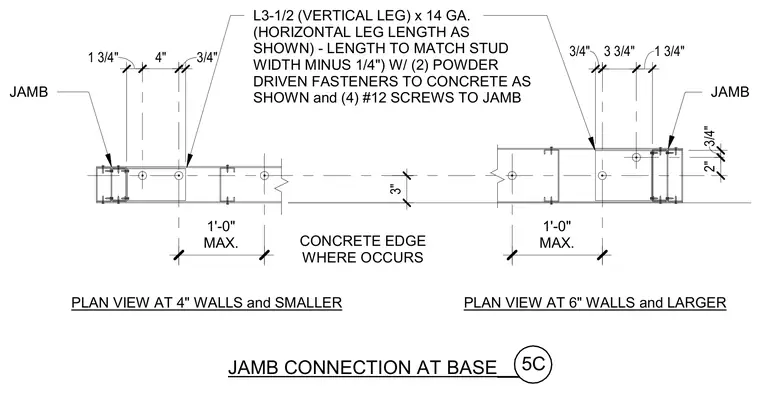

1 3/4" 4" 3/4" 3" 3 3/4" 3/4" 1 3/4" 2" 3/4" JAMB L3-1/2 (VERTICAL LEG) x 14 GA. (HORIZONTAL LEG LENGTH AS SHOWN) - LENGTH TO MATCH STUD WIDTH MINUS 1/4") W/ (2) POWDER DRIVEN FASTENERS TO CONCRETE AS SHOWN and (4) #12 SCREWS TO JAMB JAMB 1'-0" MAX. CONCRETE EDGE WHERE OCCURS PLAN VIEW AT 4" WALLS and SMALLER PLAN VIEW AT 6" WALLS and LARGER JAMB CONNECTION AT BASE__ 5C 1'-0" MAX.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
