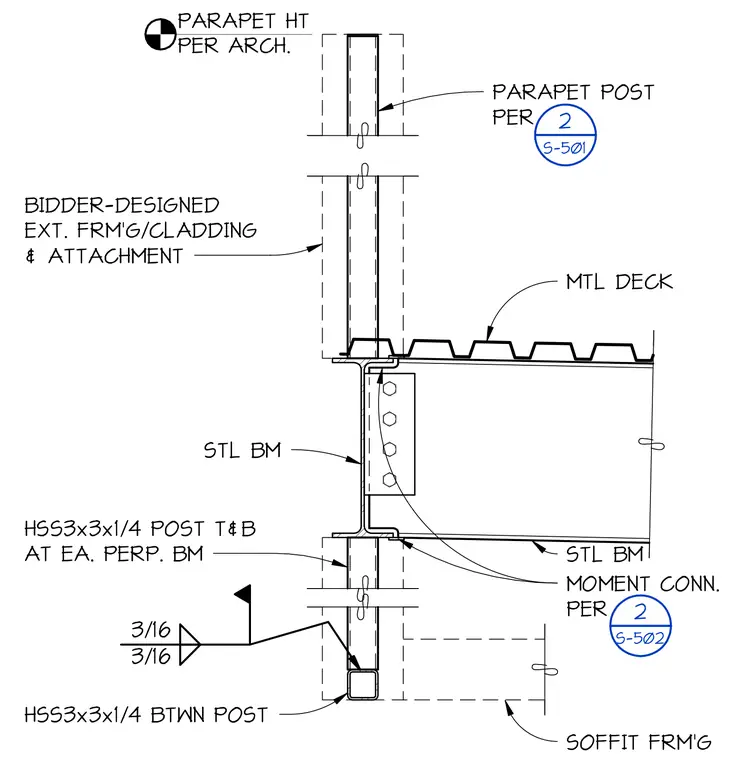

A parapet post is supported by a structural steel beam carrying a metal deck, with a hollow structural section HSS3x3x1/4 spanning between posts top and bottom at each perpendicular beam. Exterior framing, cladding, and attachment are bidder-designed per architectural height requirements. Soffit framing ties into the assembly below. Fillet welds of three-sixteenths inch secure the hollow structural section framing. A moment connection per sheet S-502 ties the steel beam assembly together.
PARAPET HT PER ARCH. 2 S-502 BIDDER-DESIGNED EXT. FRM'G/CLADDING & ATTACHMENT MTL DECK STL BM MOMENT CONN. PER SOFFIT FRM'G HSS3x3x1/4 POST T&B AT EA. PERP. BM 3/16 3/16 HSS3x3x1/4 BTWN POST STL BM PARAPET POST PER 2 S-501
