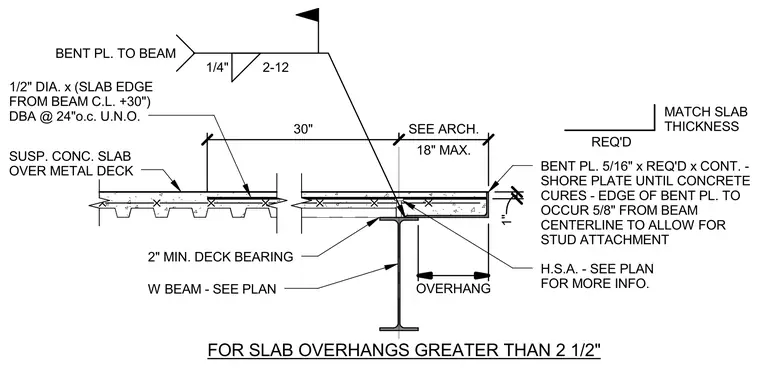

A suspended concrete slab over metal deck features a continuous bent plate edge form welded to the supporting wide flange beam. The 5/16-inch continuous bent plate is positioned with its edge 5/8-inch from the beam centerline to allow for shear stud attachment, and requires shoring until the concrete cures. For slab overhangs greater than 2-1/2 inches, half-inch diameter deformed bar anchors are provided at 24 inches on center unless noted otherwise, with dimensions spanning up to 30 inches and an 18-inch maximum overhang. The metal deck requires a minimum 2-inch bearing on the wide flange beam, sized per plan.
30" 18" MAX. SEE ARCH. 1" 1/4" 2-12 BENT PL. TO BEAM BENT PL. 5/16" x REQ'D x CONT. - SHORE PLATE UNTIL CONCRETE CURES - EDGE OF BENT PL. TO OCCUR 5/8" FROM BEAM CENTERLINE TO ALLOW FOR STUD ATTACHMENT MATCH SLAB THICKNESS REQ'D H.S.A. - SEE PLAN FOR MORE INFO. FOR SLAB OVERHANGS GREATER THAN 2 1/2" 1/2" DIA. x (SLAB EDGE FROM BEAM C.L. +30") DBA @ 24"o.c. U.N.O. SUSP. CONC. SLAB OVER METAL DECK 2" MIN. DECK BEARING W BEAM - SEE PLAN OVERHANG
