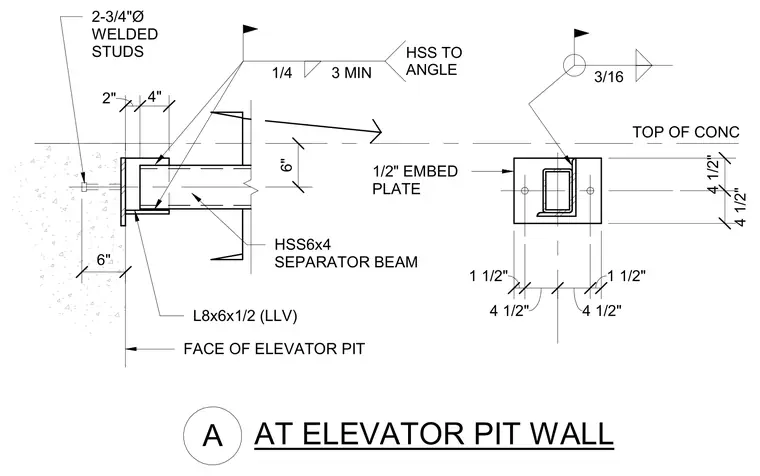

An HSS6x4 separator beam connects to a concrete elevator pit wall using a half-inch embed plate secured with three-quarter-inch welded studs. A structural angle L8x6x1/2 supports the beam assembly with a quarter-inch weld specified for the HSS-to-angle connection. A three-sixteenth-inch fillet weld secures the angle to the embed plate. Dimension callouts detail plate positioning and spacing from the face of the concrete pit wall.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
