Structural · S-5REEY

Typical S.O.G. Housekeeping Pad

Materials

Concrete

Elements

Floors / Slabs Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

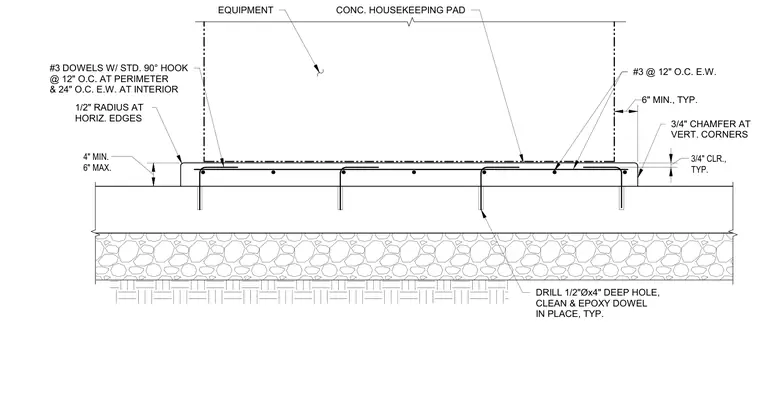

A concrete housekeeping pad is anchored to the existing slab-on-grade with number three dowels set in drilled holes with epoxy at four inches deep, spaced at twelve inches on center at the perimeter and twenty-four inches on center each way at the interior. The pad is six inches minimum in thickness, with a four-inch minimum to six-inch maximum height profile. Reinforcing consists of number three bars at twelve inches on center each way. Vertical corners feature a three-quarter-inch chamfer and horizontal edges have a half-inch radius, maintaining three-quarters of an inch typical clear cover.
