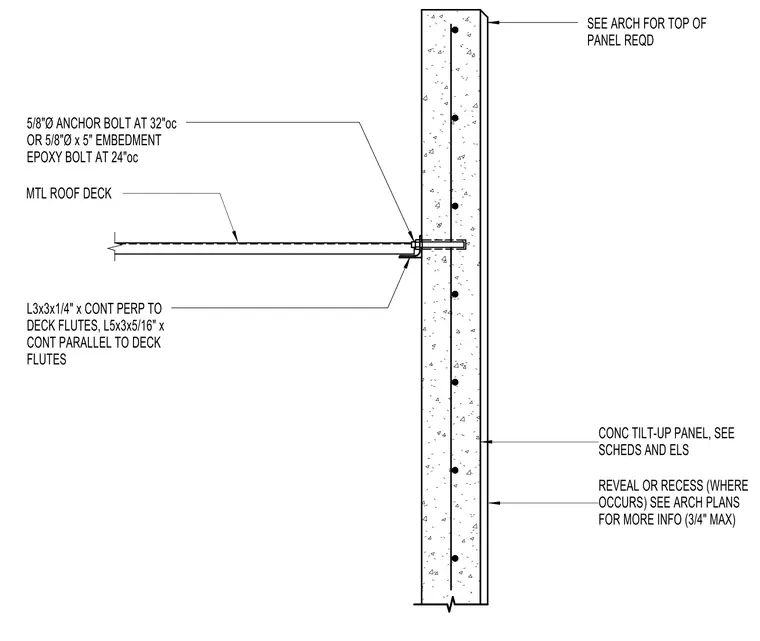

An alternate deck connection ties a metal roof deck into a concrete tilt-up wall panel using either a continuous 3x3x1/4 inch angle running perpendicular to the deck flutes or a continuous 5x3x5/16 inch angle running parallel to the deck flutes. Anchorage to the concrete tilt-up panel is provided by 5/8 inch diameter anchor bolts spaced at 32 inches on center or alternatively by 5/8 inch diameter by 5 inch embedment epoxy bolts spaced at 24 inches on center. The concrete panel features specified reveals or recesses with a maximum depth of 3/4 inch per architectural drawings.
5/8"Ø ANCHOR BOLT AT 32"oc OR 5/8"Ø x 5" EMBEDMENT EPOXY BOLT AT 24"oc L3x3x1/4" x CONT PERP TO DECK FLUTES, L5x3x5/16" x CONT PARALLEL TO DECK FLUTES CONC TILT-UP PANEL, SEE SCHEDS AND ELS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) MTL ROOF DECK SEE ARCH FOR TOP OF PANEL REQD
