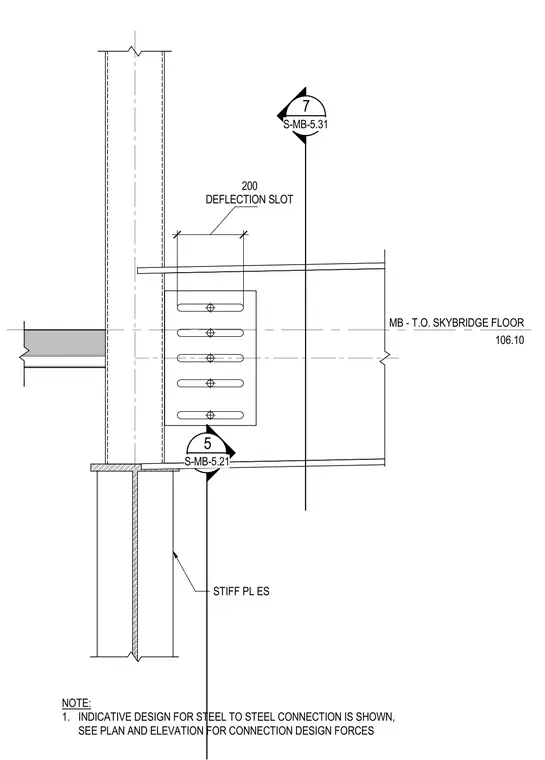

An indicative design for a steel-to-steel connection at the top of the skybridge floor at elevation 106.10 features a two-hundred millimetre deflection slot. Stiffener plates are welded to the structural steel elements as indicated. The connection incorporates slotted bolt holes to accommodate movement. Plan and elevation drawings must be consulted for final connection design forces.
STIFF PL ES NOTE: 1. INDICATIVE DESIGN FOR STEEL TO STEEL CONNECTION IS SHOWN, SEE PLAN AND ELEVATION FOR CONNECTION DESIGN FORCES 7 S-MB-5.31 MB - T.O. SKYBRIDGE FLOOR 106.10 DEFLECTION SLOT 200 5 S-MB-5.21
