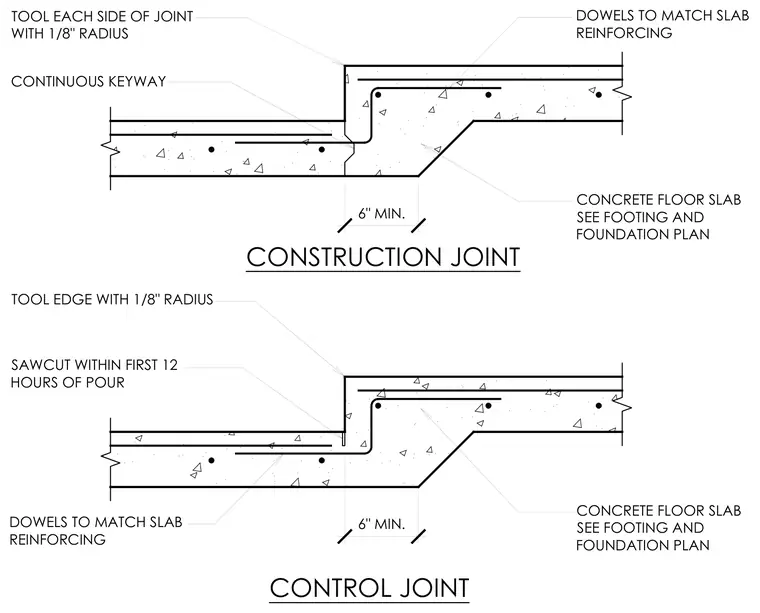

A concrete floor slab transition transitions in thickness with a six inch minimum dimension at a depressed slab condition. The construction joint features a continuous keyway, with edges tooled to a one-eighth inch radius and dowels matching the slab reinforcing extending across the joint. The control joint incorporates a similar step with slab reinforcing dowels and a sawcut performed within the first twelve hours of the concrete pour. Both conditions detail the slab thickness and reinforcement transition sized per the footing and foundation plan.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN.
