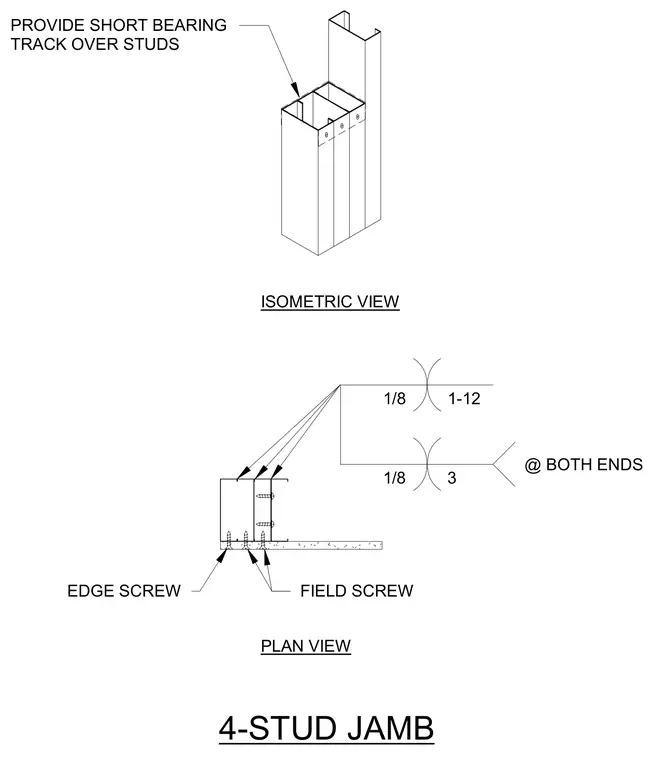

Four cold-formed steel studs are configured to form a robust jamb assembly with a short bearing track placed over the top of the studs. Edge screws and field screws fasten the framing elements together according to specified spacing patterns at both ends.
1/8 1-12 1/8 3 @ BOTH ENDS EDGE SCREW FIELD SCREW PLAN VIEW 4-STUD JAMB ISOMETRIC VIEW PROVIDE SHORT BEARING TRACK OVER STUDS
