Structural · S-5QGQY

Typical Timber Column on Steel Beam Connection

Materials

Steel Timber / Wood

Elements

Columns Beams Anchors / Embeds

Connections

Embed Plate

About this detail

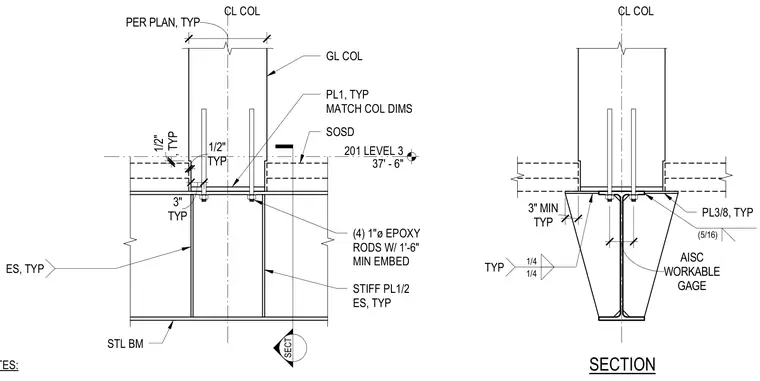

A timber column is supported on a structural steel beam at level three, established at elevation 37 feet 6 inches. The timber column is anchored using four one-inch-diameter epoxy rods with a one-foot six-inch minimum embedment into a base plate that matches the column dimensions. Stiffener plates measuring one-half inch thick are welded to each side of the steel beam web using quarter-inch fillet welds. An additional three-eighths-inch workable plate with five-sixteenths-inch fillet welds provides additional connection stability at the beam flange interface.
