A 4x4 timber post connects to a concrete masonry unit wall sized per plan using half-inch diameter Simpson Titen HD concrete screw anchors spaced at three feet on center and six inches from the end, complying with evaluation service report ESR number 1056 with a minimum of four anchors required. The post is additionally secured with number 8 by four and one-half inch wood screws. The masonry wall includes centered placement dimensions.

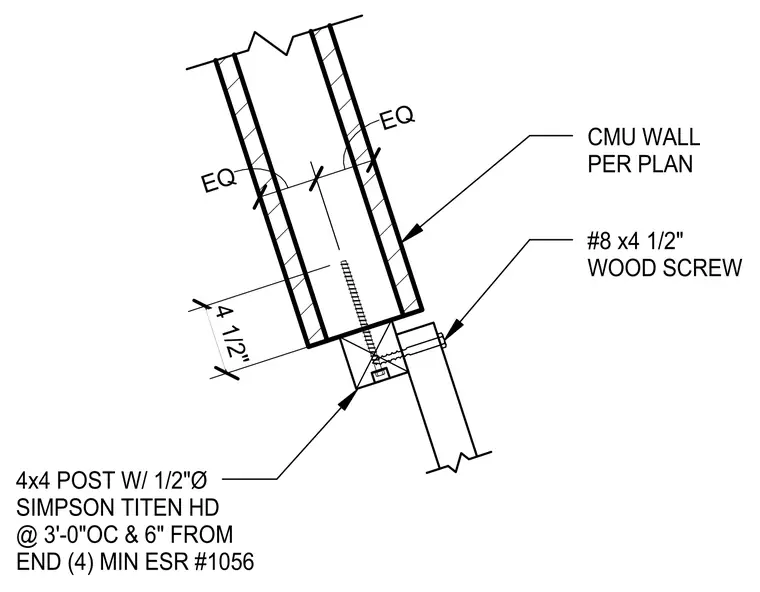

4 1/2" EQ EQ CMU WALL PER PLAN #8 x4 1/2" WOOD SCREW 4x4 POST W/ 1/2"Ø SIMPSON TITEN HD @ 3'-0"OC & 6" FROM END (4) MIN ESR #1056
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
