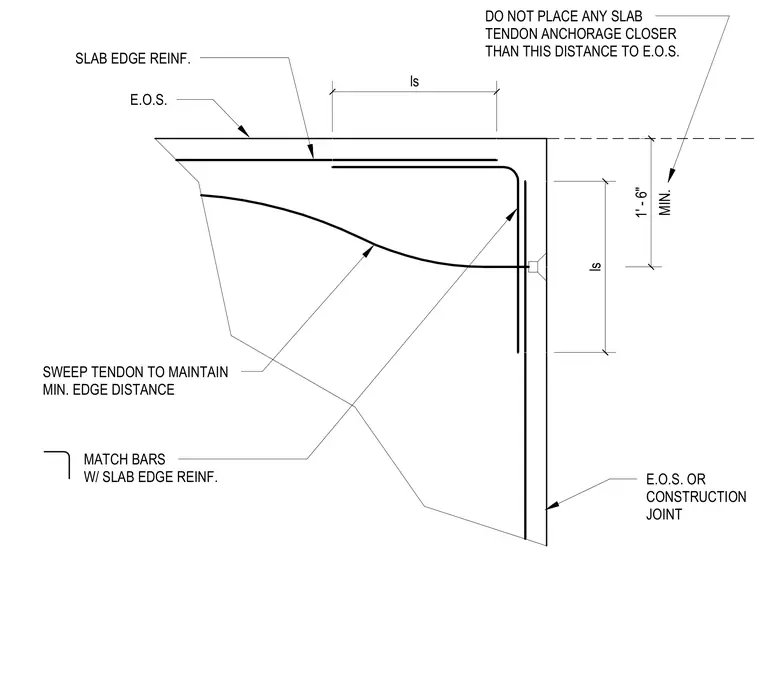

Post-tensioned tendons are swept to maintain the minimum edge distance from the edge of slab or construction joint. Slab edge reinforcement matches the bar size and layout of the principal reinforcement. No slab tendon anchorage is placed closer than one foot six inches to the edge of slab.
ls E.O.S. SLAB EDGE REINF. SWEEP TENDON TO MAINTAIN MIN. EDGE DISTANCE E.O.S. OR CONSTRUCTION JOINT ls MIN. 1' - 6" DO NOT PLACE ANY SLAB TENDON ANCHORAGE CLOSER THAN THIS DISTANCE TO E.O.S. MATCH BARS W/ SLAB EDGE REINF.
