Structural · S-5PW68

Full Height Shear Tab Connection for Wide Flange Beams

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Bolted Connection Expansion / Slip Connection

About this detail

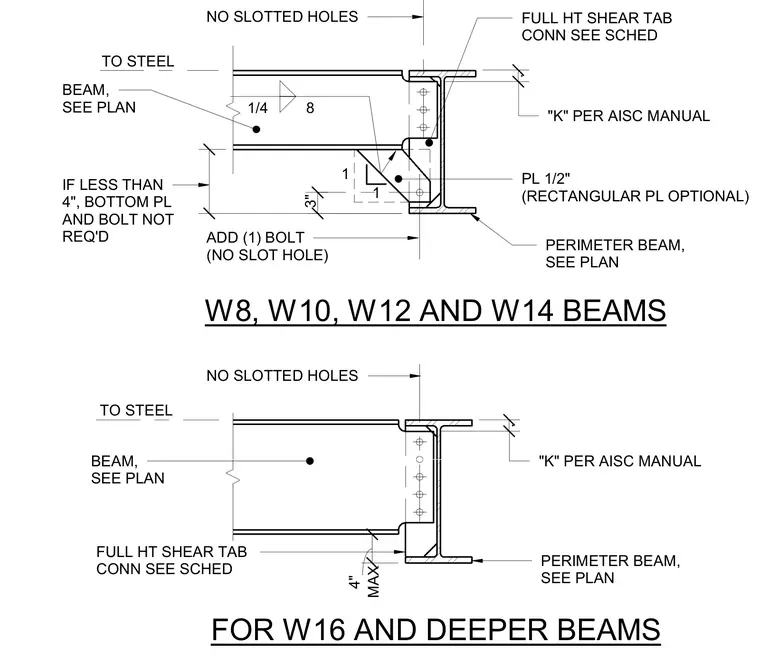

Full height single plate shear tab connections for W8, W10, W12, and W14 beams framing into W16 and deeper perimeter beams. The connection utilizes a one-half-inch plate, which may be rectangular optionally, welded to the supporting steel with a one-quarter-inch fillet weld. Holes are unslotted, and conditions with a distance less than four inches omit the bottom plate and bolt while adding one bolt without a slot hole. Design conforms to AISC manual requirements regarding "k" dimensions for the supporting wide flange member.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
